14. CONNECTION FOR Series 160is/180is/210is

B–63523EN/03

442

CAUTION

Before attaching or removing cables, power off the CNC

main unit, and confirm that the power is off.

Ask the respective manufacturers for explanations about

how to build a network and about conditions for using units

(such as a media converter, hub, transceiver, and cable)

other than the CNC unit. When installing network cables,

exercise sufficient caution so that the network will not be

affected by any noise source. Electrically separate the

network wiring sufficiently from noise sources like motors

and their power lines. Also, ground each unit as required.

If the grounding impedance is high, it may cause trouble in

communication. Once the equipment is installed, conduct

communication tests to verify normal operation before

starting actual use of the equipment.

FANUC is not liable to any damage related to trouble arising

from any unit other than the CNC unit.

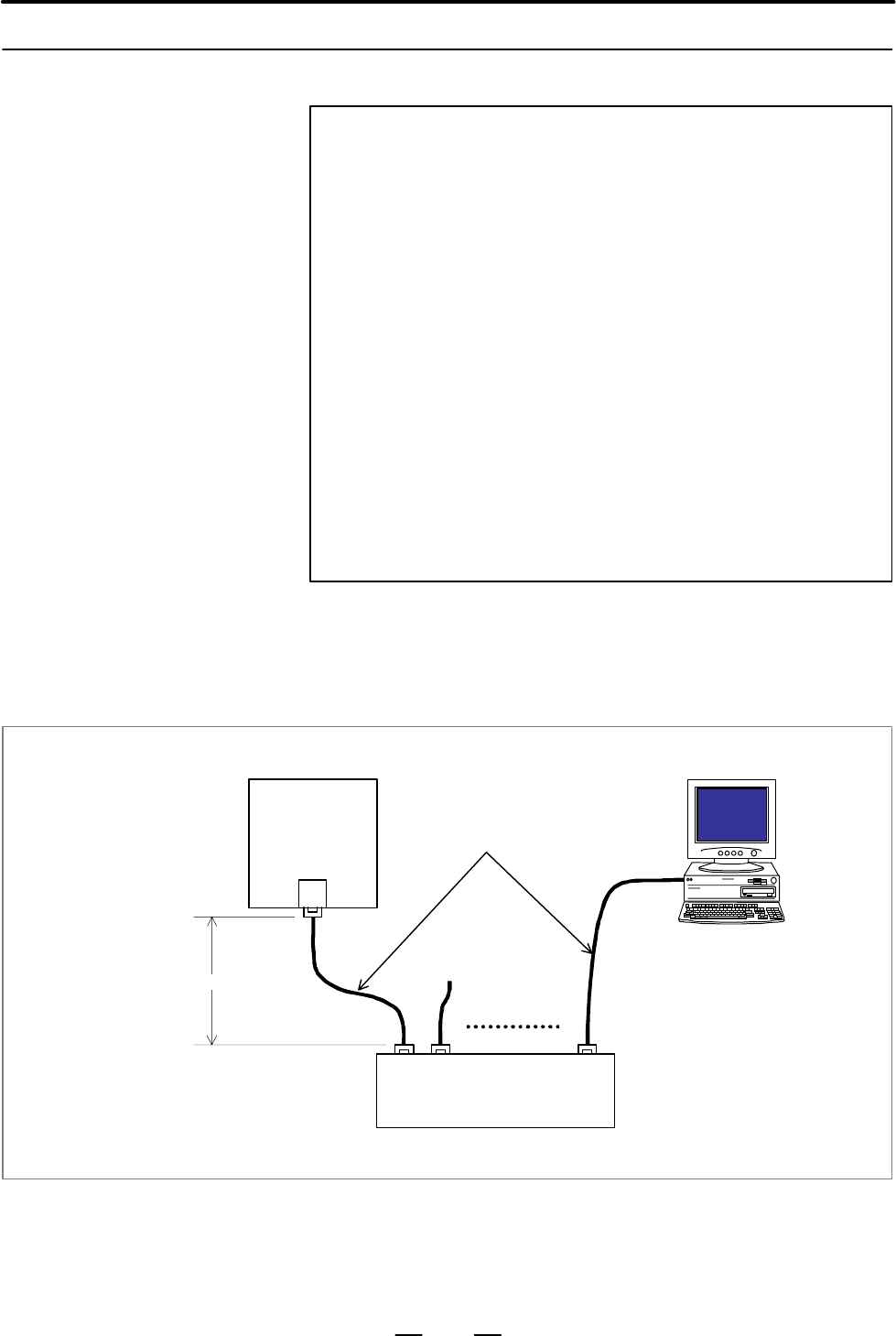

(1)Connection to the Ethernet Interface

The 10BASE–T and 100BASE–TX interfaces are available. A hub

(line concentrator) is used to connect the CNC unit to a system. A

typical connection example is shown below.

LCD–mounted

type CNC unit

or CNC display

unit for

Windows

Twisted–pair cable

HUB

(line concentrator)

Max. 100m

Some of the units (hub, transceiver, etc.) required to build a network

are not dust–proof. Using them in an atmosphere with dust or oil mist

may lead to a communication error or failure. They should be enclosed

in a dust–proof cabinet.

14.3.3

Ethernet Interface

(10BASE–T/

100BASE–TX)
