9. CONNECTION TO FANUC I/O Link

B–63523EN/03

280

NOTE

When the DO signal is in the ON state in the sequence, the

ON or OFF state of the DOCOM pin determines the state of

the signal, as shown within dotted lines in the above figure.

Do not turn off the +24 V supply provided by the CPD1 to the

I/O module during the operation. Turning off the +24 V

supply causes a CNC communication alarm. When turning

on the power, the +24 V supply to the I/O module must be

turned on before or at the same time as the power supply

to the CNC. When turning off the power, the +24 V supply

to the I/O module must be turned off after or at the same time

as the power supply to the CNC.

The DO load current can be doubled by connecting two DO points in

parallel and turning them on and off simultaneously in sequence, as

shown in the figure below. The maximum load current per DI point is 200

mA. Connecting two DO points in parallel and turning them on at the

same time produces a current of 400 mA. Note that, however, when two

DO points are connected in parallel, the leakage current also doubles

when they are off (max. 40 mA).

DOCOM

CE56(A24, B24, A25, B25)

CE57(A24, B24, A25, B25)

+24V 0V

+24 stabilized

power supply

Relay

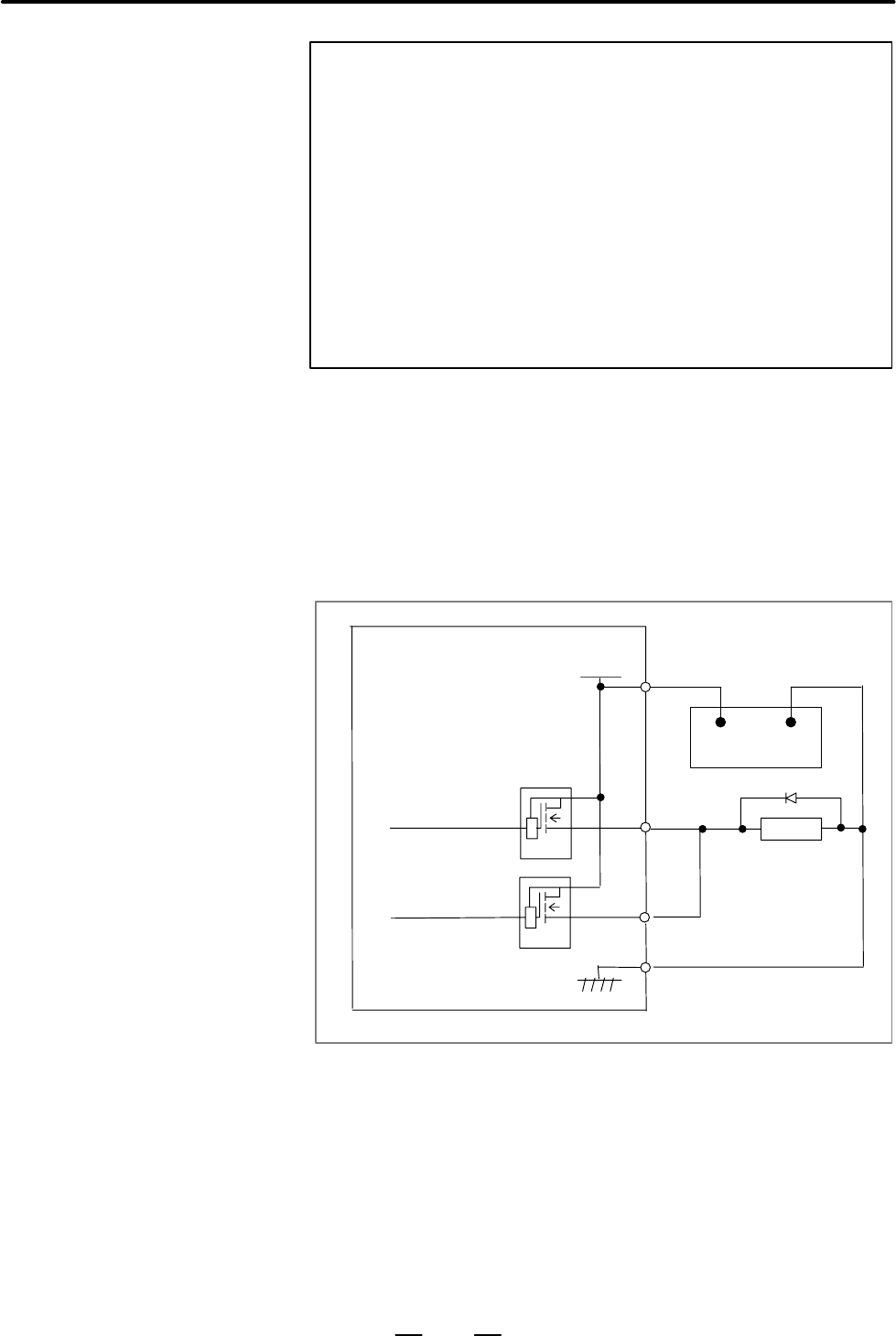

Parallel DO (output

signal) connection
