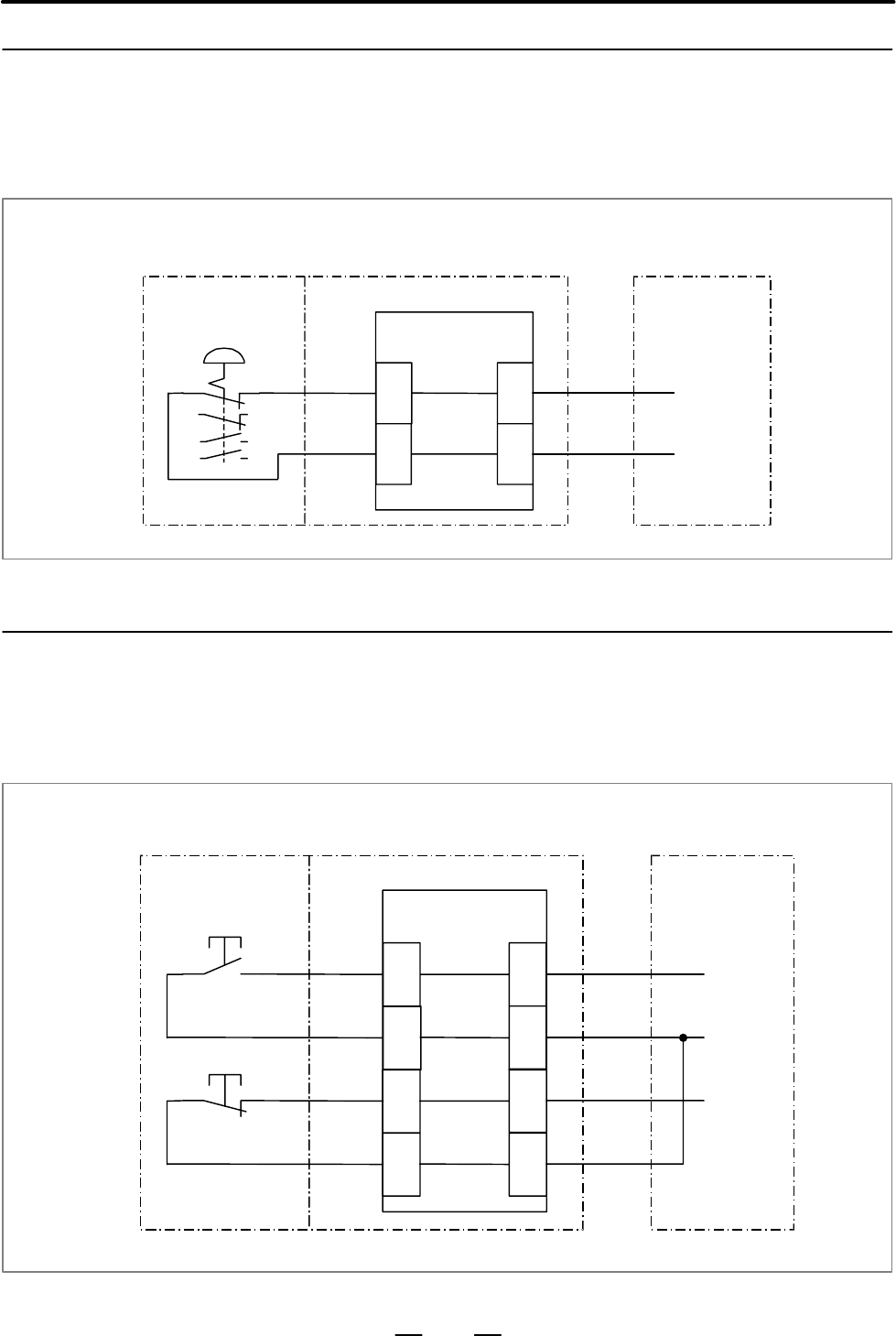

A signal generated by the emergency stop switch on the machine
operator’s panel can be sent to the power magnetic cabinet. (This signal
cannot be sent to the FANUC I/O Link.)
When MTB uses the Sub panel A/B/B1/C/C1, wiring to the emergency
stop switch is contained in the Sub panel A/B/B1/C/C1.
Machine operator’s panel
Sub panel A/B/B1/C/C1
Emergency stop
Switch (SB1)
*ESP
ESPCM1
Main panel A/B/A1/B1
P.C.B
CM67 CA65
A04 A03
B04
B03
*ESP
ESPCM1
*ESP
+24V
(2a2b)
Power magnetic cabnet
Signal generated by the power ON/OFF control switches on the machine
operator’s panel can be sent to the power magnetic cabinet. (This signal
cannot be sent to the FANUC I/O Link.)
When MTB uses the Sub panel A/C/C1, wiring to the ON/OFF control
switches are contained in the Sub panel A/C/C1.
Machine operator’s panel
Sub panel A/C/C1
ON switch (SB2)
OFF switch (SB3)
EON
COM1
EOFF
COM2
Main panel A/B/A1/B1
P.C.B.
CM67 CA65
A01
A02
B01
B02
A02
B01
B02
A01 EON
COM
EOFF
Power magnetic cabnet
9.13.3.5
Emergency stop signal
connection
9.13.3.6
Power ON/OFF control
signal connection
