B–63523EN/03

9. CONNECTION TO FANUC I/O Link

333

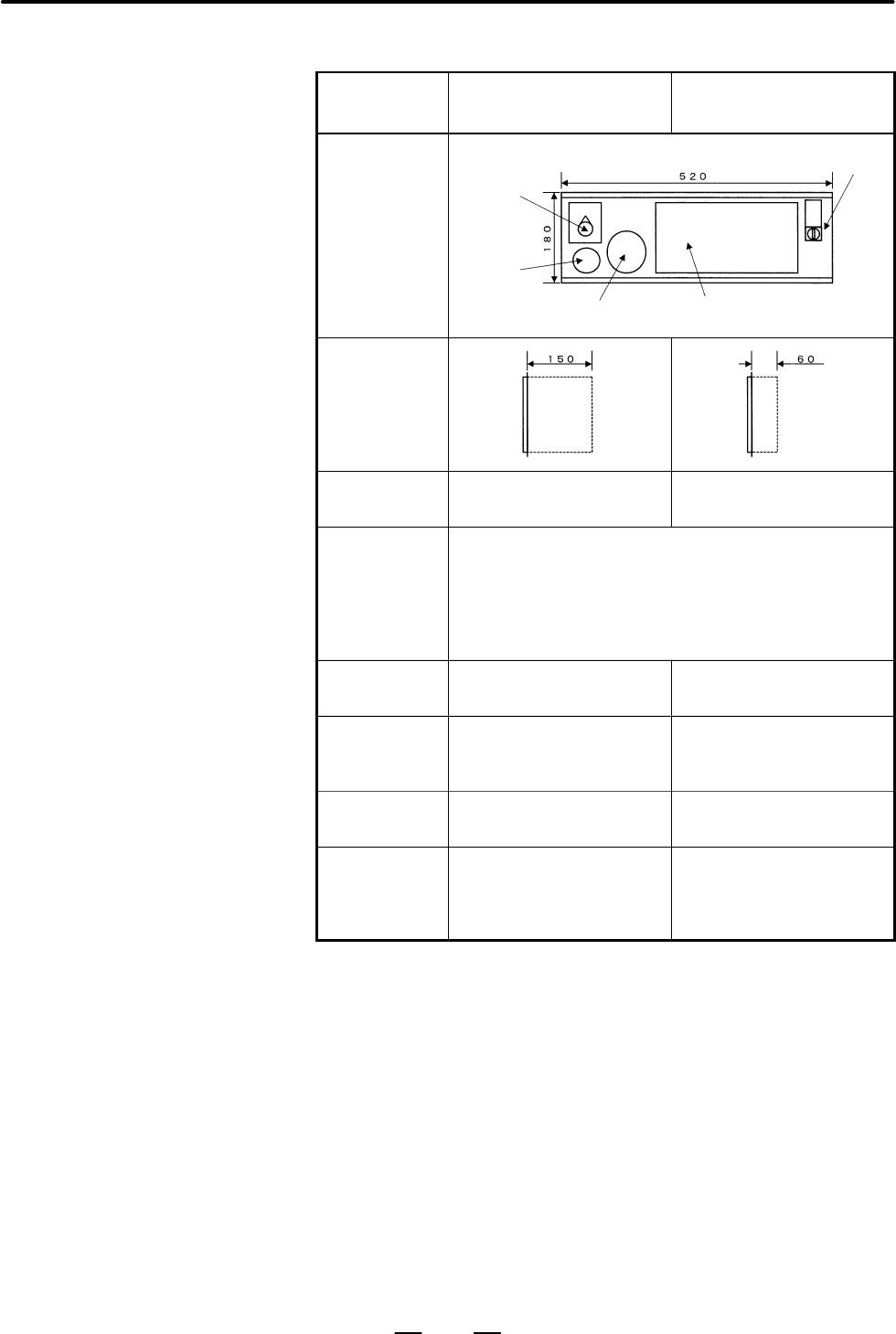

(Standard–size machine operator’s panel)

Item FS0 standard machine

operator’s panel

Distribution I/O machine

operator’s panel

Panel No design modification

Program protect key

Override

rotary

switch

Emergency

stop button

Manual pulse generator Keyboard (key switch/LED)

Depth

Override 150% maximum,

binary code output

200% maximum,

gray code output

Key sheet The key sheet is compatible, so that a machine tool builder’s

custom key sheet designed for the FS0 standard machine

operator’s panel, can be used as is. When a new unit is to be

built using the existing key sheet and distribution I/O machine

operator’s panel, however, redesign is required for this

combination.

Connection with

CNC

DI/DO connection I/O Link connection

Emergency stop Already wired Not wired. Perform wiring

suitable for the system as

described in Section 9.12.5.

Manual pulse

generator

One unit is available.

No wiring is performed.

One unit is available.

No wiring is performed.

MPG interface None Up to three units can be

connected.

However, only i series CNCs

can be connected.
