9. CONNECTION TO FANUC I/O Link

B–63523EN/03

332

The distribution I/O machine operator’s panel is of distribution I/O type

that is connected via I/O Link to the CNC. Its panel is the same as that

of the FS0 standard machine operator’s panel. The distribution I/O

machine operator’s panel has features both common to and different from

those of the FS0 standard machine operator’s panel, as indicated below.

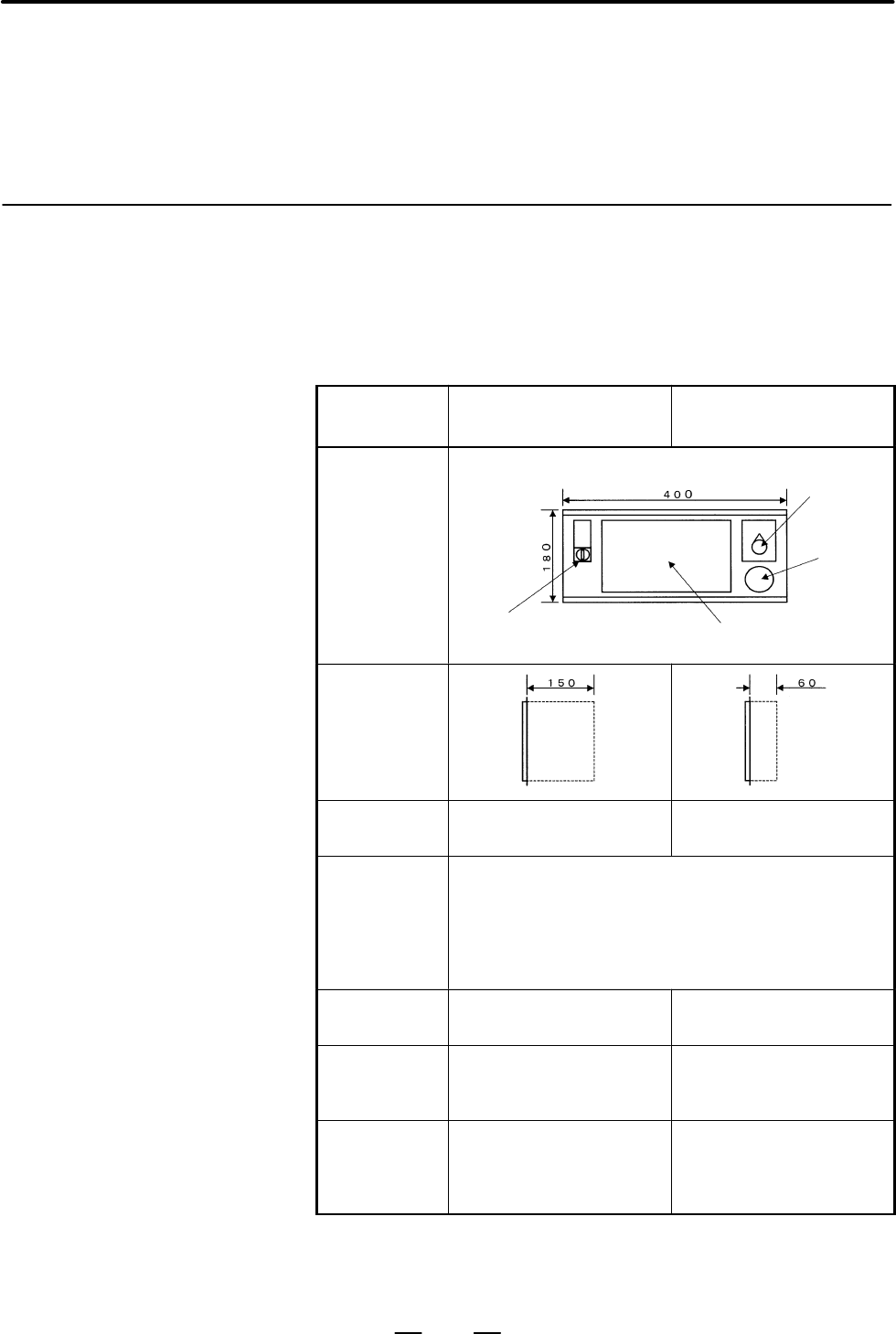

(Small machine operator’s panel)

Item FS0 standard machine

operator’s panel

Distribution I/O machine

operator’s panel

Panel No design modification

Override

rotary

switch

Emergency

stop button

Program

protect key

Keyboard

(key switch/LED)

Depth

Override 150% maximum,

binary code output

200% maximum,

gray code output

Key sheet The key sheet is compatible, so that a machine tool builder’s

custom key sheet, designed for the FS0 standard machine

operator’s panel, can be used as is. When a new unit is to be

built using the existing key sheet and distribution I/O machine

operator’s panel, however, redesign is required for this

combination.

Connection with

CNC

DI/DO connection I/O Link connection

Emergency stop Already wired Not wired. Perform wiring for

the system as described in

Section 9.12.5.

MPG interface None Up to three units can be

connected.

However, only i series CNCs

can be connected.

9.12

CONNECTION OF

THE DISTRIBUTION

I/O MACHINE

OPERATOR’S PANEL

9.12.1

Differences between

the FS0 Standard

Machine Operator’s

Panel and Distribution

I/O Machine Operator

Panel
