Series 16i/160i/160is/18i/180i/180is/21i/210i/210is - Model B Connection manual (Hardware) Page 462

Connection manual (Hardware)
14. CONNECTION FOR Series 160is/180is/210is
B–63523EN/03
446
(c) Connector specification
An 8–pin modular connector called the RJ–45 is used with a
twisted–pair cable for Ethernet interfaces. Use the connector listed
below or equivalent.
Manufacturer Specification Remark
Connector used with cable
AWG26 4P TPMC–C5–F(SB)
TM21CP–88P(03) Hirose Electric Co., Ltd.
(*)
NOTE
About TM21CP–88P(03)
Connector (manufacturer’s standard product)
Drawing number: A63L–0001–0823#P
Manufacturer: Hirose Electric Co., Ltd.
Manufacturer’s model number: TM21CP–88P(03)
Complying with EIA/TIA 568A categories 3 and 5
Ask Hirose Electric Co., Ltd. for explanations about how to
attach the connector to a cable.
(Hirose Electric Co., Ltd. offers the TM21CP–88P(03) Wiring
Procedure Specification (Engineering Specification No.
ATAD –E2367) to explain the related technical information.)
(5)Anti–Noise Measure
(a) Separating signal lines
Ethernet cable wires belong to group C. See descriptions
elsewhere for explanations about how to separate them from wires
in group A or B.

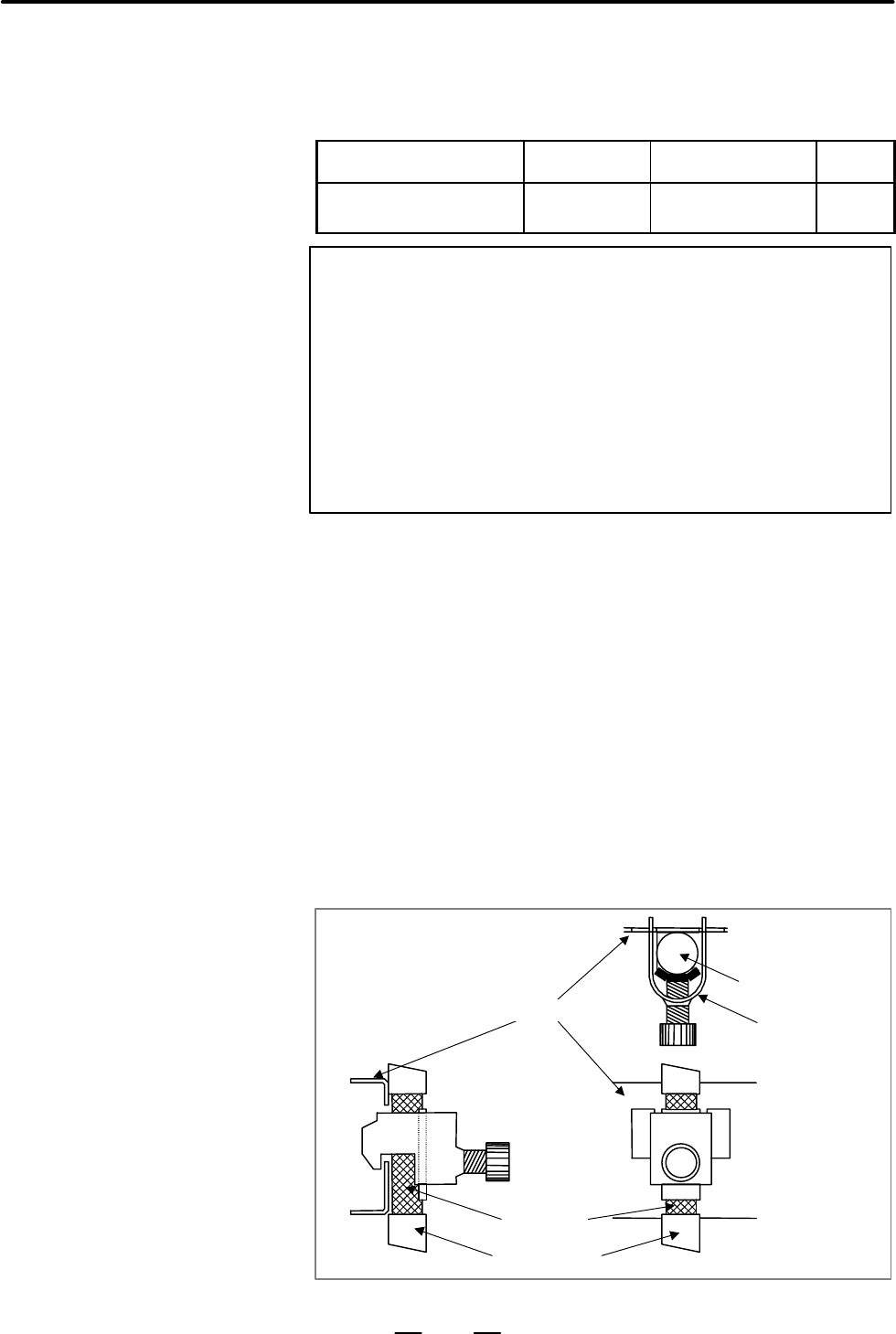

(b)Cable Clamp and Shield Processing
If a cable connected to the CNC requires shielding, clamp the cable
as shown below. The clamp both supports and shields the cable.
Use this clamp to ensure stable operation of the system.
Partially peel out the sheath and expose the shield. Push and clamp
by the plate metal fittings for clamp at the part. The ground plate
must be made by the machine tool builder, and set as follows :
Ground plate
Cable
Cable clamp
Shield
Cable shield
