1. CONFIGURATION

B–63523EN/03

Mother board

CPU for controlling CNC

· Power supply

· 2–axis to 6–axis control

· Spindle interface

· LCD/MDI

· I/O link

· PMC–SB7

· Analog output/high–

speed DI

· RS–232C × 2

· Memory card interface

Basic system

On a unit with option slots, as many option boards as the number of option slots can be mounted. (However,

the option board must satisfy the mounting conditions. See the mounting conditions for additional options.)

The following types of units are available:

D Unit without option slots

D Unit having two option slots

D Unit having three option slots

D Unit having four option slots

Loader control board

Loader control function

· 2–/4–axis control

Serial communication board

Remote buffer/

DNC1/DNC2/HDLC

C board

C functions for PMC

Sub–CPU board

Sub–CPU for 2–path control

· 2–axis to 6–axis control

· Spindle interface

· Analog output

Symbol CAPi T

Conversational

automatic

programming

function

Data server board

Data server function

HSSB interface board

High–speed serial bus

interface

Options

Network board

· I/O Link–II board

· Ethernet board

· Profibus–DP board

· DeviceNet board

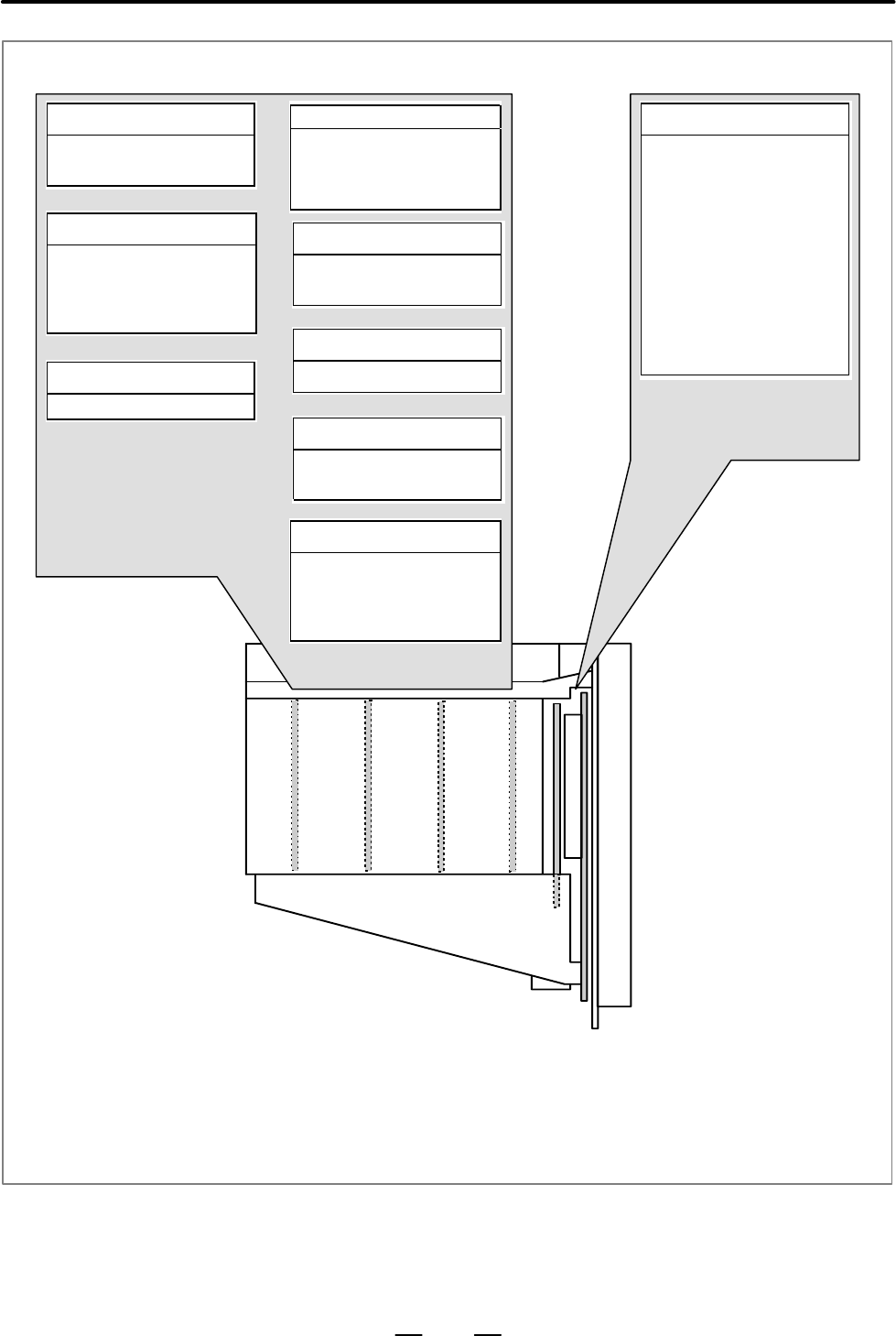

Fig. 1.2 (b) Configuration of the LCD–mounted type control unit (Series 18i/180is)
