14. CONNECTION FOR Series 160is/180is/210is

B–63523EN/03

438

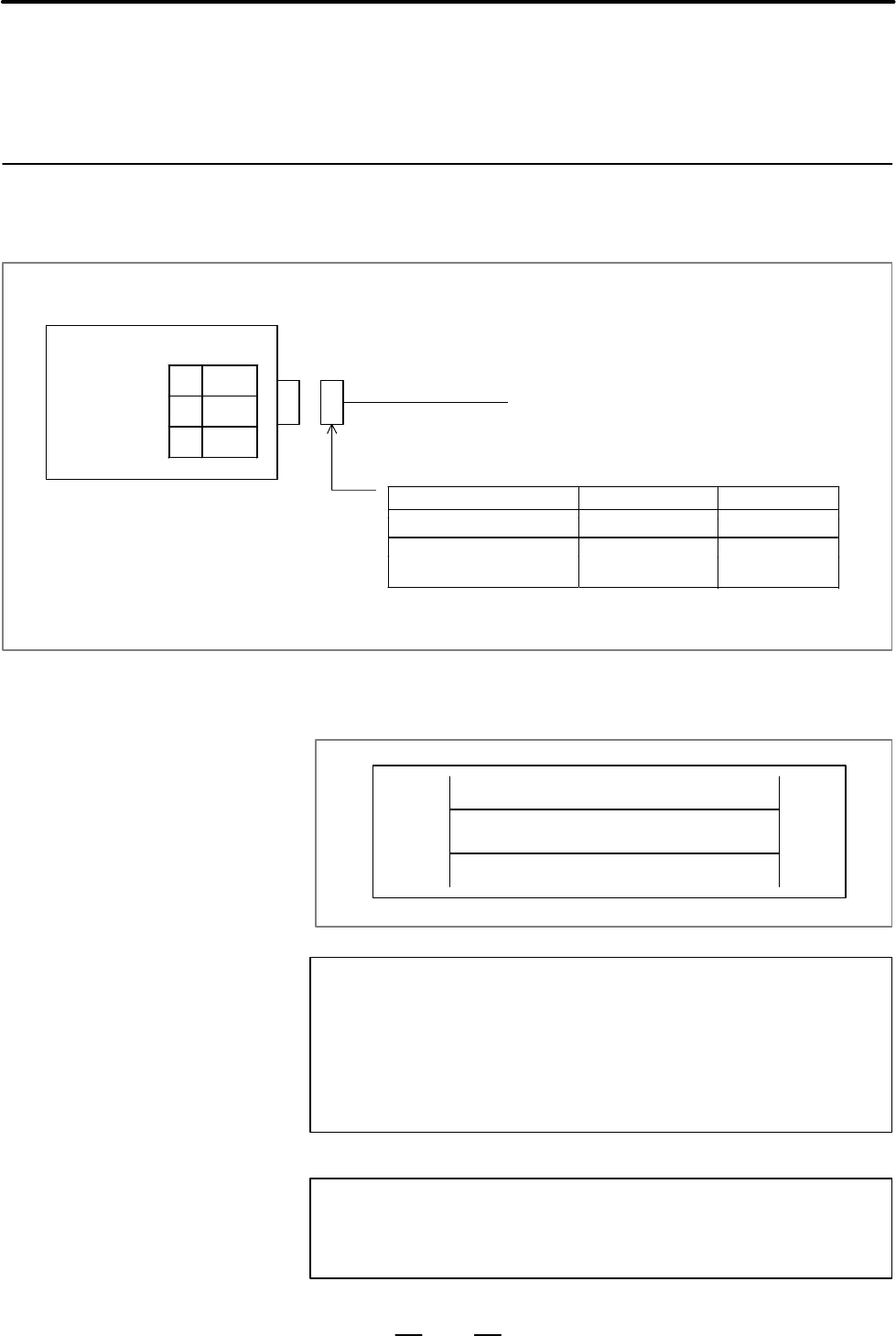

LCD–mounted Type CNC and

CNC display unit for Windows

CP1

+24V

+24VDC input

AMP

Housing Contact

LCD–mounted type 1–178288–31–175218–5

CNC display unit for 2–178288–31–175218–5

Windows

Separate housings are used for the LCD–mounted

Type and the display unit for the is Series CNC.

(i) Cable wiring

CP1

+24V

NOTE

1 Keep the power supply cable away from other cables

connected to the Series 160is/180is/210is.

2 Turn on/off the power to the display unit for the is Series

CNC within "100 ms after the power to the stand–alone

type control unit is turned on/off.

WARNING

It is impossible to turn on/off the display unit for the is Series

CNC and the CNC control unit separately.

14.3

CONNECTION TO

CNC PERIPHERALS

14.3.1

Main Power Input
