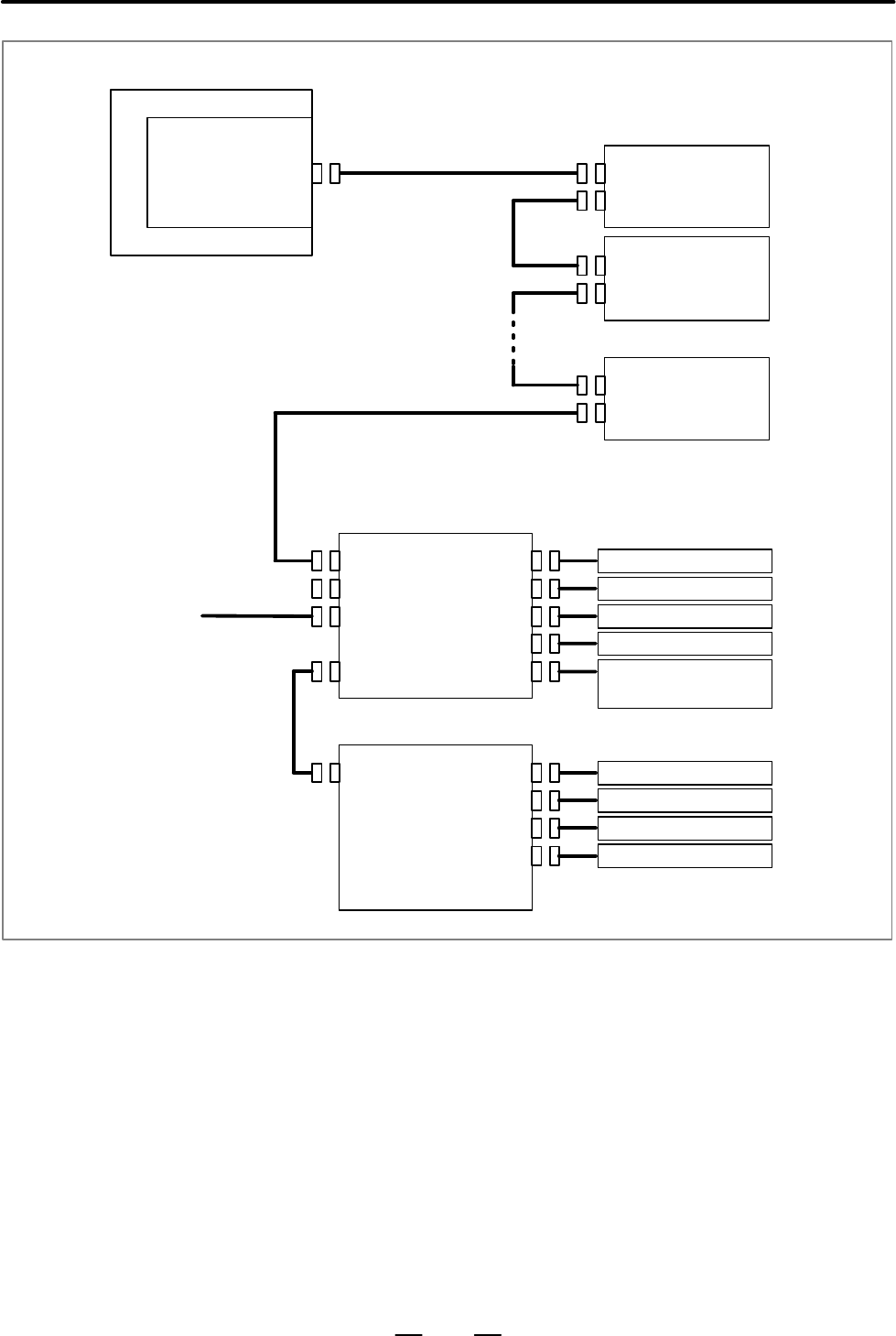

7. SERVO INTERFACE

151

COP10B

COP10A

CP11A

CNF1

Servo amplifier module

Optical fiber cable

Separate detector interface unit 1

DC24V

CNC

COP10B

COP10A

Linear scale axis 1

Battery for absolute

separate detector

Servo card

COP10A

Linear scale axis 2

COP10B

COP10A

COP10B

COP10A

JF101

JF102

JF103

JF104

JA4A

Linear scale axis 3

Linear scale axis 4

CNF2

Separate detector interface unit 2

(This can not be used in the Series 21i/210i/210is.)

JF105

JF106

JF107

JF108

Flat cable

Linear scale axis 5

Linear scale axis 6

Linear scale axis 7

Linear scale axis 8

Up to 8 axes with 16i/160i/160is

Up to 6 axes with 18i/180i/180is

Up to 4 axes with 21i/210i/210is

When a separate pulse coder or linear scale is used, a separate detector

interface unit, as shown above, is required. The separate detector

interface unit should be connected to the CNC control unit through an

optical fiber cable, as one of the units on the servo interface (FSSB).

Although the above figure shows the separate detector interface

connected in the final stage of the FSSB line, it can also be connected, at

the nearest location, to the CNC control unit. Or, it can be installed

between two servo amplifier modules.

When the separate detector interface unit is connected to the FSSB line

that uses the high–speed HRV function, however, it must be at the last

stage if five slaves are involved.
