14. CONNECTION FOR Series 160is/180is/210is
B–63523EN/03
450
This connector (JD48) is used for a serial port and USB port on the PC
side.
This port is used for remote debugging of application software.
To use the following functions, use an RS–232–C connector (JD36A or
JD36B) on the CNC side rather than this connector.
Input/output of parameters and programs performed using the CNC screen
display function
Ladder uploading, downloading, and monitoring performed by FAPT–LADDER III
DNC operation performed via RS–232–C
External control of I/O devices
LCD–mounted type CNC and CNC
display unit for is series CNC
JD48
PCR–E20MD
1RD11SD
20V12USB_0V
3 Reserve 13 Reserve
40V14Reserve
5CS15RS
6 USB_+ 16 Reserve
7 Reserve 17 Reserve
8 USB_– 18 Reserve
9 Reserve 19 Reserve
10 Reserve 20 USB_5V
Shield
Relay connector (example 1)
D–SUB 25
1FG
2SD
3RD
4RS
5CS
6DR
7SG
8CD
9
10
11
12
13
14
15
16
17
18
19
20 ER
21
22 RI
23
24
25
Relay connector (example 2)
D–SUB 9
1CD
2RD
3SD
4ER
5SG
6DR
7RS
8CS
9RI

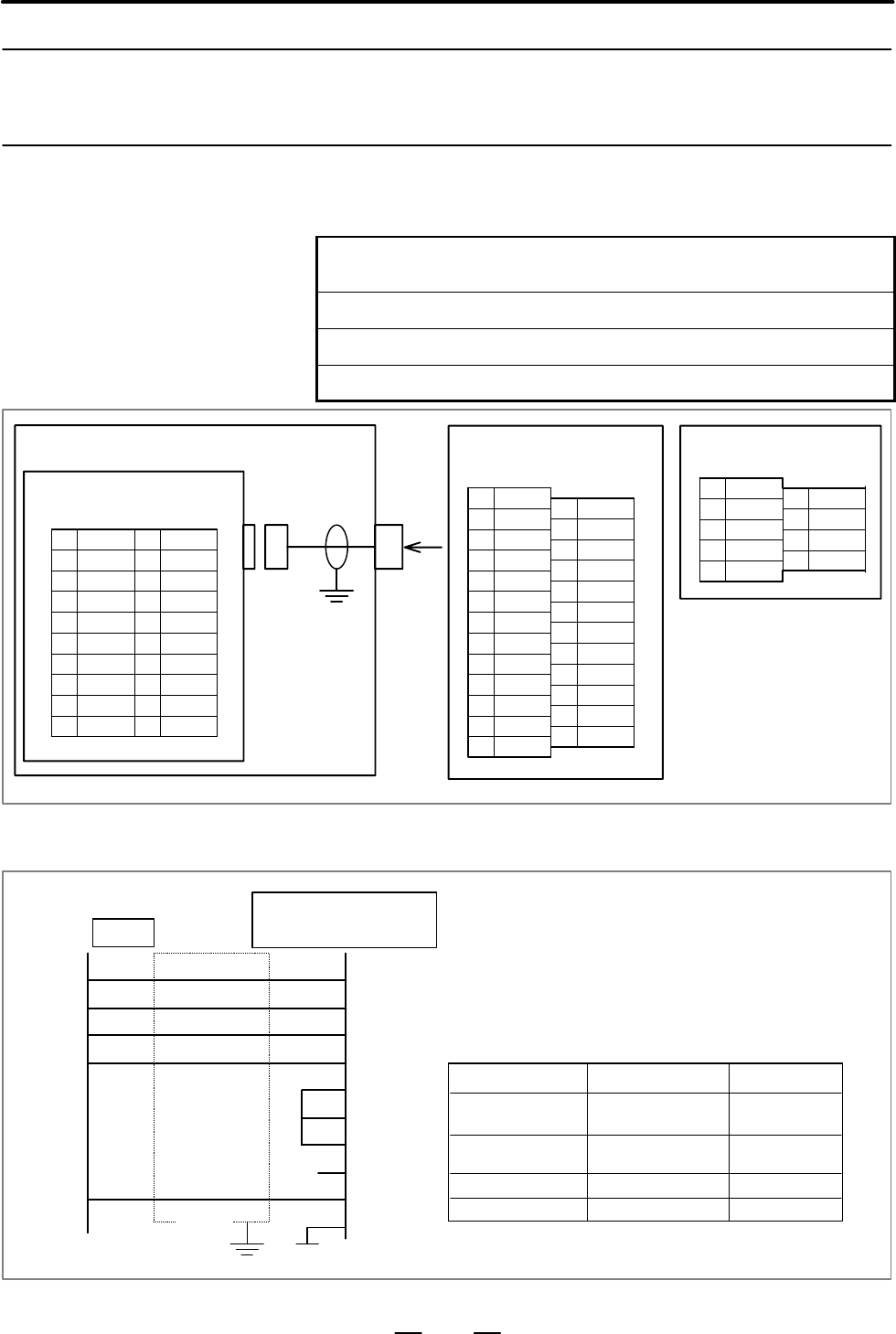

(i) Connection example (Example 1: Conversion to D–SUB 25–pin
connector)
Relay connector
D–SUB 25 (example 1)
JD48
SD
RD
RS
CS
0V
11
01
15
05
02,12
04,14
SD
RD
RS
CS
DR
ER
CD
RI
SG
FG
02
03
04
05
06
20
08
22
07
01
Shield
Ground plate
GND
Recommended wire specification:
A66L–0001–0284#10P
(#28AWGX10–pair)
Recommended connector for cable and housing (JD48 side)
Connector Housing Manufacture
PCR–E20FA PCR–V20LA/ Honda Tsushin
PCS–E20LA Kogyo
FI30–20S FI–20–CV2/ Hirose Electric
FI–20–CV7
FCN–247J020–G/E FCN–240C020–Y/S Fujitsu
52622–2011 52624–2015 Molex Japan
14.3.4
Serial Port/USB Port
14.3.4.1
Serial port
Previous page
Next page
