B–63523EN/03

9. CONNECTION TO FANUC I/O Link

363

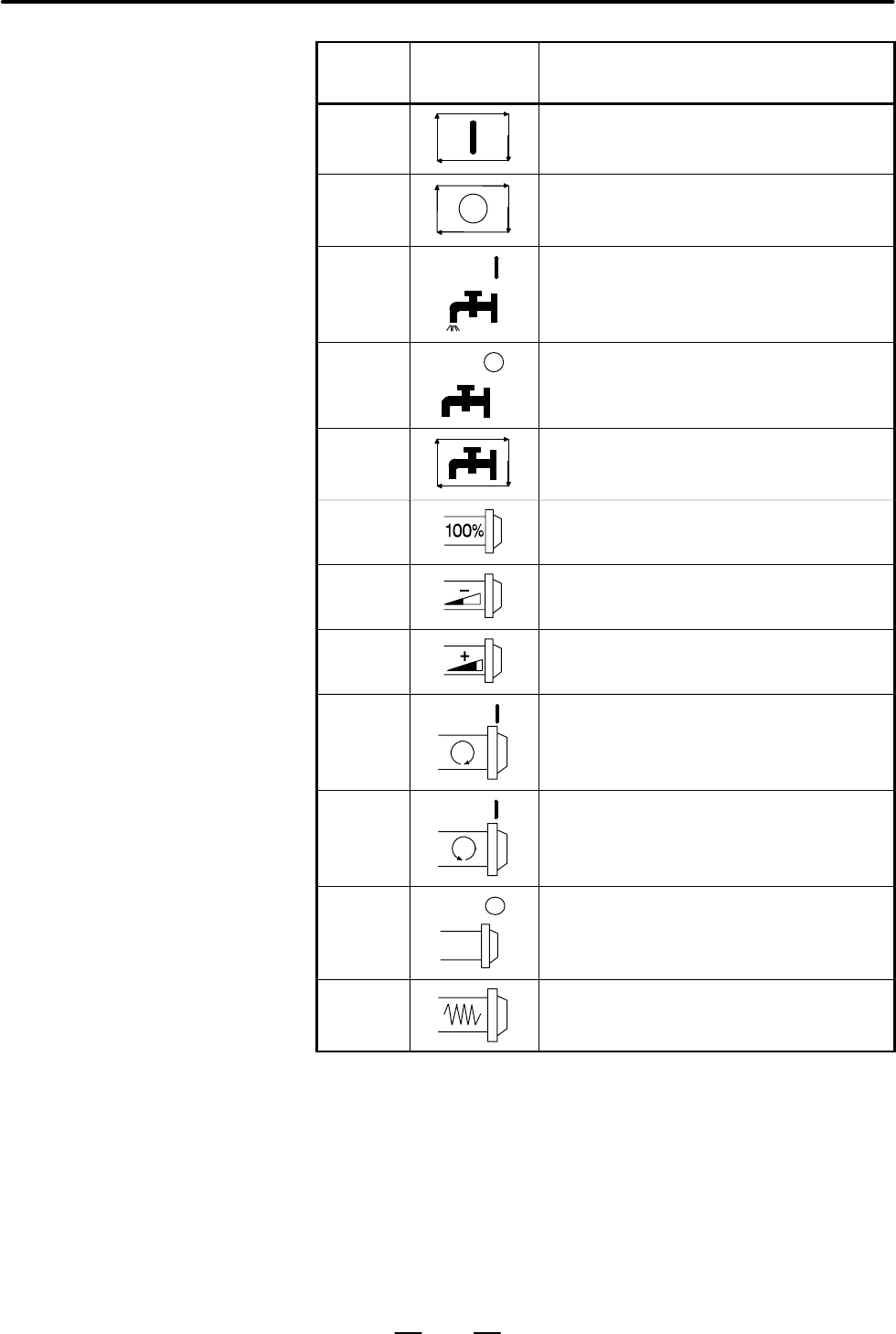

English

indication

Meaning of keySymbol

indication

CYCLE

START

Cycle start: Starts automatic operation.

CYCLE

STOP

Cycle stop: Stops automatic operation.

CLNT

Coolant on: Start the supply of coolant.

CLNT

OFF

Coolant off: Stops the supply of coolant.

CLNT

AUTO

Coolant automatic: Starts and stops the supply

of coolant automatically.

SPDL

100%

Spindle override 100%: Sets an override of

100% for the spindle motor speed.

SPDL

DEC

Spindle deceleration: Decelerates the spindle

motor rotation.

SPDL

INC

Spindle acceleration: Accelerates the spindle

motor rotation.

SPDL

Positive spindle rotation direction: Rotates the

spindle motor in the positive direction.

SPDL

CCW

Negative spindle rotation direction: Rotates the

spindle motor in the negative direction.

SPDL

STOP

Spindle stop: Stops the spindle motor rotation.

SPDL

JOG

Manual spindle feed: Rotates the spindle motor

manually.
