5. CONNECTION TO CNC PERIPHERALS

B–63523EN/03

108

+24V

GND

RECOMMENDED CABLE SPECIFICATION

A66L–0001–0284#10P (#28AWG 10 pairs)

RECOMMENDED CABLE–SIDE CONNECTORS

(JD36A, JD36B, JD5A, JD5B)

PCR–E20FA (Honda Tsushin Kogyo Co., Ltd.)

FI30–20S (Hirose Electric Co., Ltd.)

FCN–247J020–G/E (Fujitsu, Ltd.)

52622–2011 (Molex Japan Co., Ltd.)

RECOMMENDED CABLE SPECIFICATION (PUNCH PANEL)

For JD36A and JD36B

A02B–0236–C191 (1 m)

A02B–0236–C192 (2 m)

A02B–0236–C193 (5 m)

RECOMMENDED CABLE SPECIFICATION (PUNCH PANEL)

For JD5A and JD5B

A02B–0120–C191 (1 m)

A02B–0120–C192 (2 m)

A02B–0120–C193 (5 m)

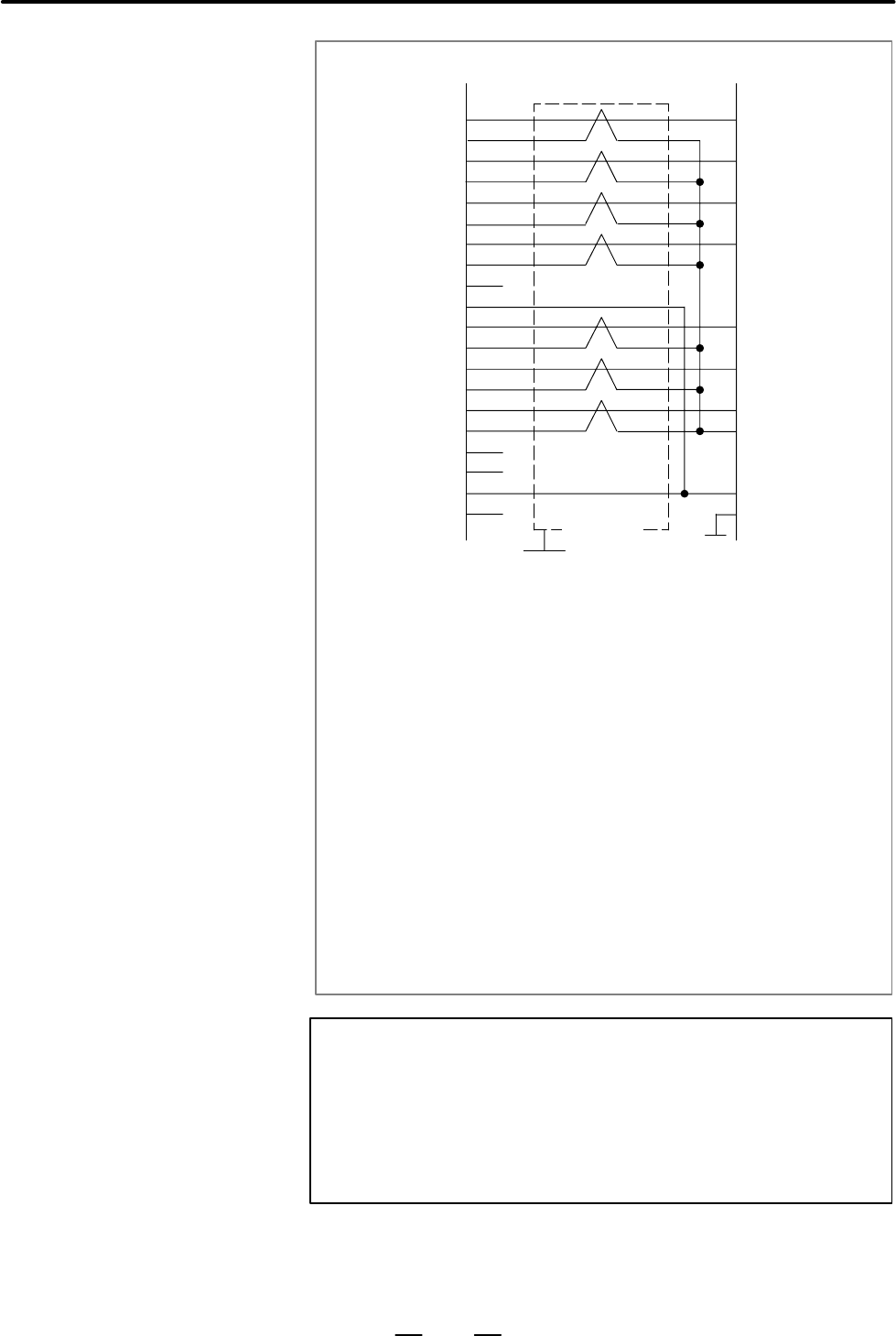

CABLE CONNECTION

GROUNDING PLATE

SHIELD

NOTE

1 Do not connect anything to those pins for which signal

names are not indicated.

2 The recommended cable connector FI30–20S (manufactured

by Hirose Electric) cannot be used for connectors JD5A and

JD5B of the stand–alone type i Series CNC.
