7. SERVO INTERFACE

B–63523EN/03

166

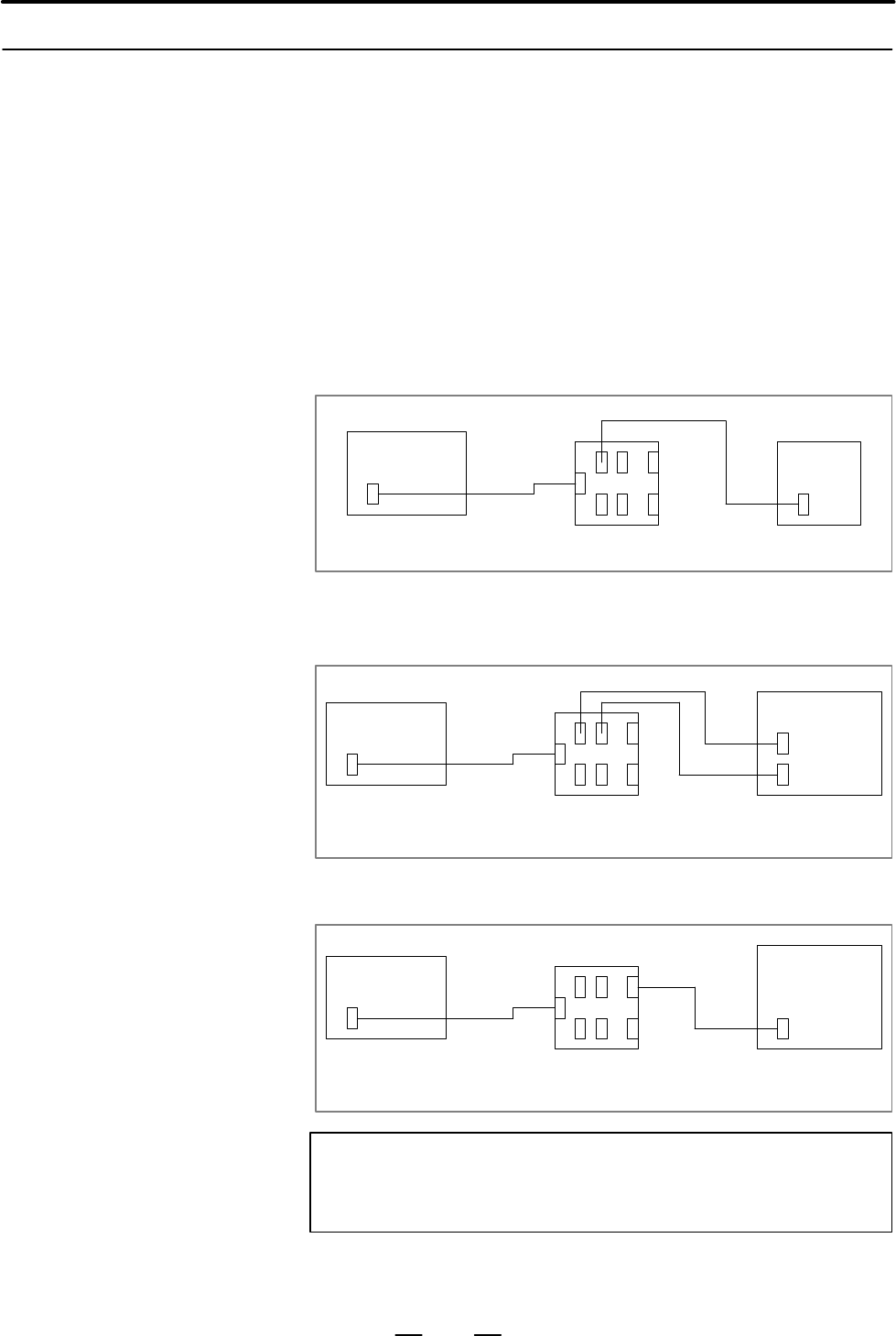

The servo check connectors used with the i Series (MODEL B) are not

compatible with the i Series (MODEL A). So, to connect the servo check

board (board unit: A16B–1600–0320) or interface board for automatic

adjustment (board unit: A16B–2300–0170 or A20B–2002–0810, Unit:

A06B–6057–H620 or A06B–6057–H630) with the i Series, a new servo

check adapter (board unit: A20B–1007–0790) and special cable

(A660–2042–T237#100R0) are required. (The ordering information for

the servo check adapter and cable is A02B–0281–K822.)

Examples of connection

When the servo check board is used

Connect TEST0–3 with CN2 of the servo check board via the currently

used flat cable.

CA69

CNC

CN0

TESTn

CN2

Servo check adapter Servo check board

When the interface board for automatic adjustment is used

A) Connect TEST0–3 with CIN1/2 of the interface board for automatic

adjustment via a currently used flat cable.

CA69

CNC

CN0

TESTn

CIN1

Interface board for

automatic adjustment

CIN2

Servo check adapter

B) Connect TESTA/B with CIN3 of the interface board for automatic

adjustment via a straight cable (such as A660–2042–T007#*****).

CA69

CNC

CN0

TESTx

CIN3

Interface board for

automatic adjustment

Servo check adapter

NOTE

In any case, use the special cable (A660–2042–T237) to

connect CN0 with CA69 on the mother board of the CNC.

7.1.14

Connecting the Servo

Check Adapter
