9. CONNECTION TO FANUC I/O Link

B–63523EN/03

246

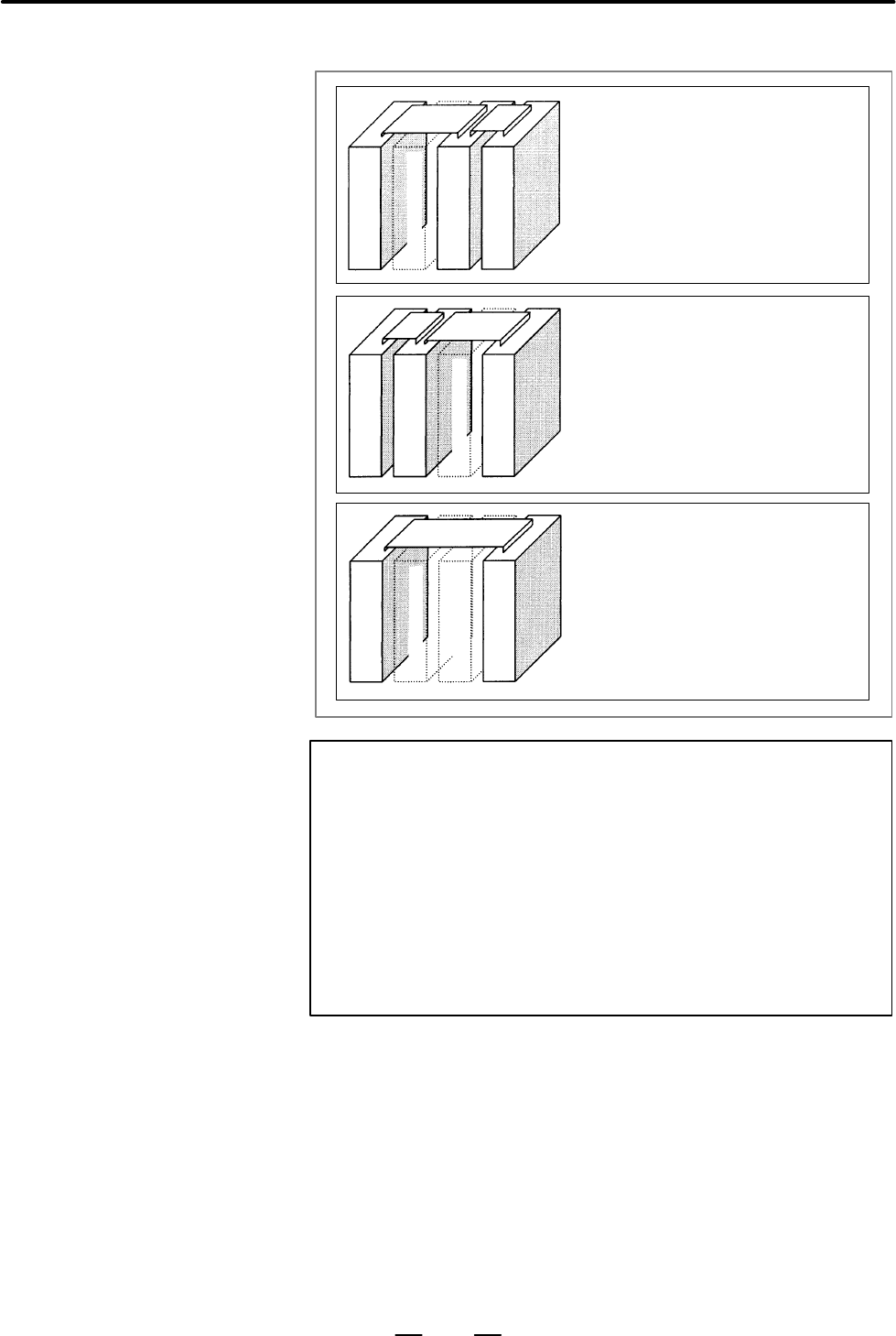

Examples of setting

Basic module

Expansion module 1

Expansion module 2

Expansion module 3

Basic module

Expansion module 1

Expansion module 2

Expansion module 3

Basic module

Expansion module 1

Expansion module 2

Expansion module 3

(When expansion module 1 is omitted)

On expansion module 2, set the rotary

switch to setting position 1. On expan-

sion module 3, keep the rotary switch

set to setting position 0.

(When expansion module 2 is omitted)

On expansion module 3, set the rotary

switch to setting position 1. On expan-

sion module 1, keep the rotary switch

set to setting position 0.

(When expansion modules 1 and 2

are omitted)

On expansion module 3, set the rotary

switch to setting position 2.

NOTE

1 Expansion module A (DI/DO = 24/16, with manual pulse

interface) (A03B–0815–C002) is fitted with an additional

rotary switch as other types of modules are modified.

However, expansion module A is always mounted at the

location of expansion module 1, so that its factory setting

need not be changed.

2 This feature was added in the middle. The expansion

modules shipped before August 1998 are not provided with

this feature.
