9. CONNECTION TO FANUC I/O Link

B–63523EN/03

236

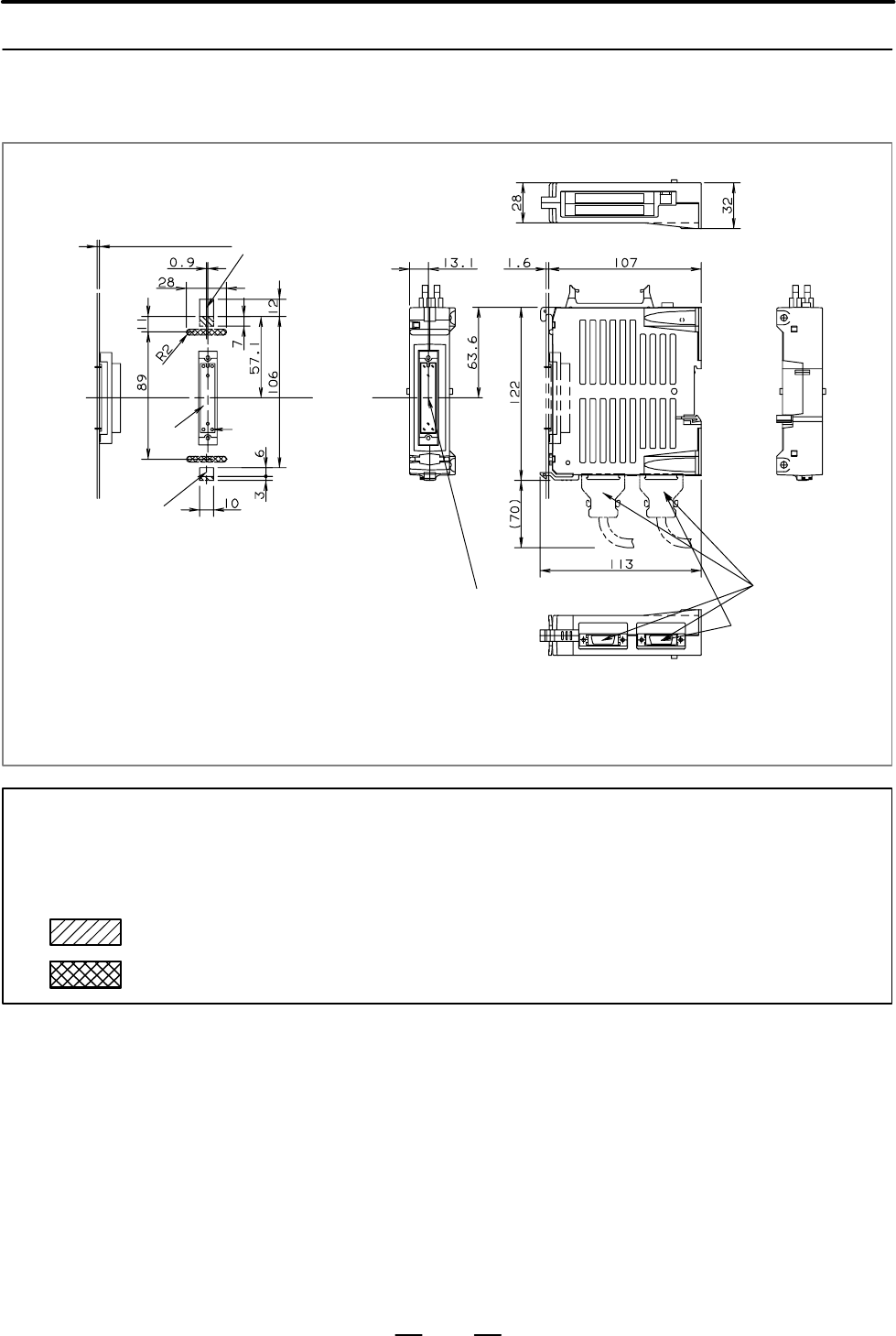

When connecting a connector panel printed circuit board directly

(external module view and mounting diagram)

Dimensions of connector panel

printed circuit board ±0.2

Board thickness

1.6 mm

Square hole

No. 1

I/O interface

Square

hole

I/O Link

interface

MPG interface

(for extension

module)

Connector panel printed circuit board connector specification:

HONDA MRH–50FD (50–pin female straight connector without fitting)

NOTE

1 A connector with a fitting (HONDA MRH–50RMA) is used for the module–side I/O interface.

Always use a connector having no fitting for the connector panel printed circuit board.

2 Area where pattern printing is prohibited

: Prohibited area on component side

: Prohibited area on soldered side

9.4.18

Module Installation
