8. CNC DISPLAY UNIT WITH PC FUNCTIONS

B–63523EN/03

198

(1)Usable boards

Up to two PCI expansion boards (shown below) can be used in CNC

display unit with PC functions.

PCI Specification 2.1 compliant

32 bits, 33 MHz, +5 V

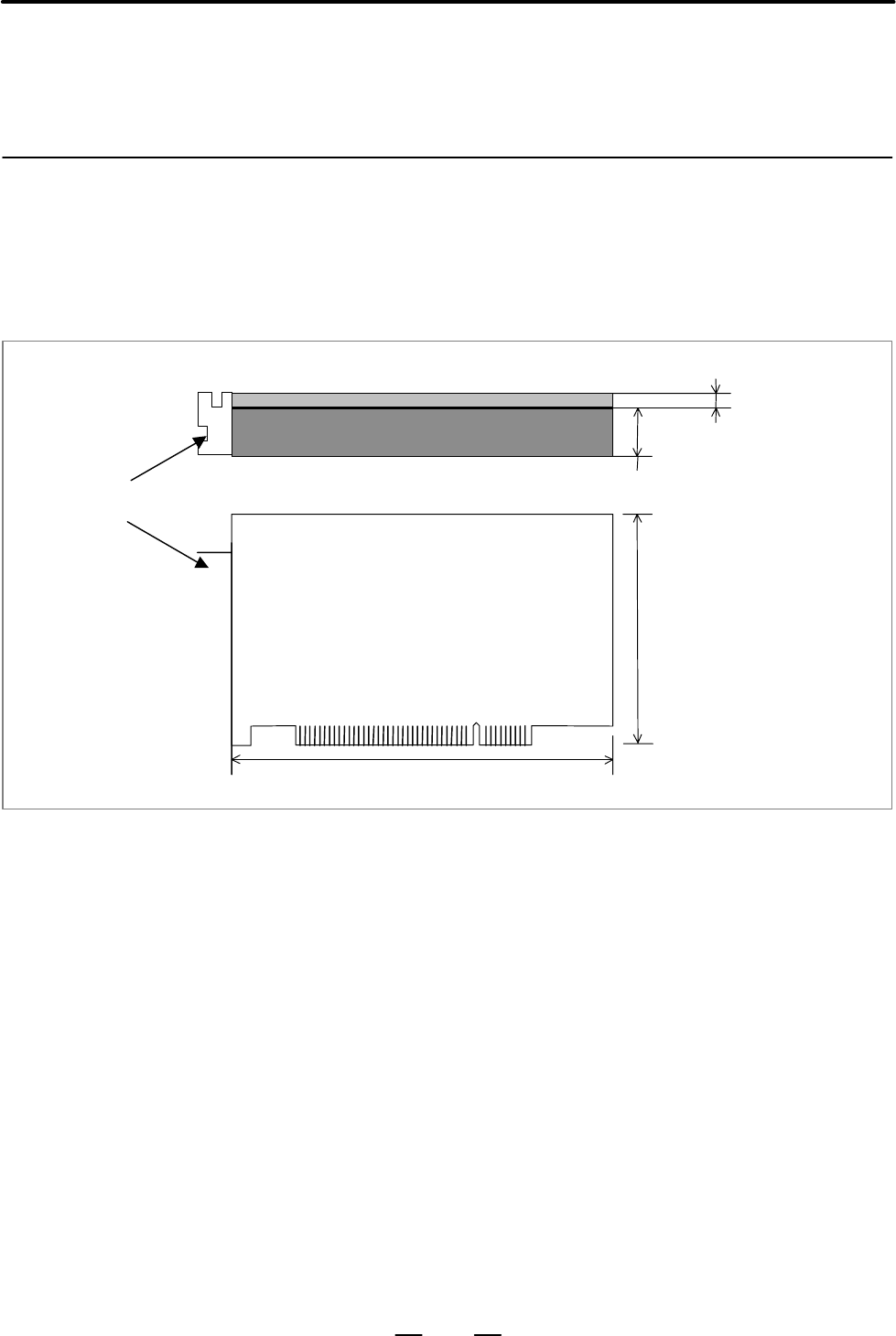

The external dimensions of the card are shown below.

Parts height of back side : up to 3mm

Up to 176.41mm

Unit : mm

Up to 106.68mm

Fix by screw

Parts height of front side : up to 13mm

(2)Method of mounting PCI extension board

a) Release vibration–proof fittings by loosening the screw at point

(B).

b) Push the board fully into the PCI connector.

c) Tighten the screw at point (A).

d) Press down vibration–proof fittings to the PCI extension board and

tighten the screw at point (B).

* In the case of mounting two boards, the height of board mounted

in slot 1 must be lower than the height of the board mounted in slot

2 for holding both board with each vibration–proof fittings.

* If the fittings do not fit these extension boards, please change the

screw (B) positions.

8.8

PCI EXPANSION

BOARD

8.8.1

Installation Method
