FANUC Series 16i/18 i -TA
Compound Machining Function
TITLE
CUST.DRAW.NO.
(2) Measurement
CNC recognizes the angle (-90°/0°/90°) of B-axis according to not the
coordinates value but R signal. And, the address of the R signal is specified
by the parameter. The signal must not be input, except for the above-
mentioned angle. The offset conversion is not done when the signal is not
input, and P/S alarm 5309 occurs.
Moreover, the distinction of the inside and outside of the tool must be input
to CNC with a signal. CNC does the conversion by the state of the signal.

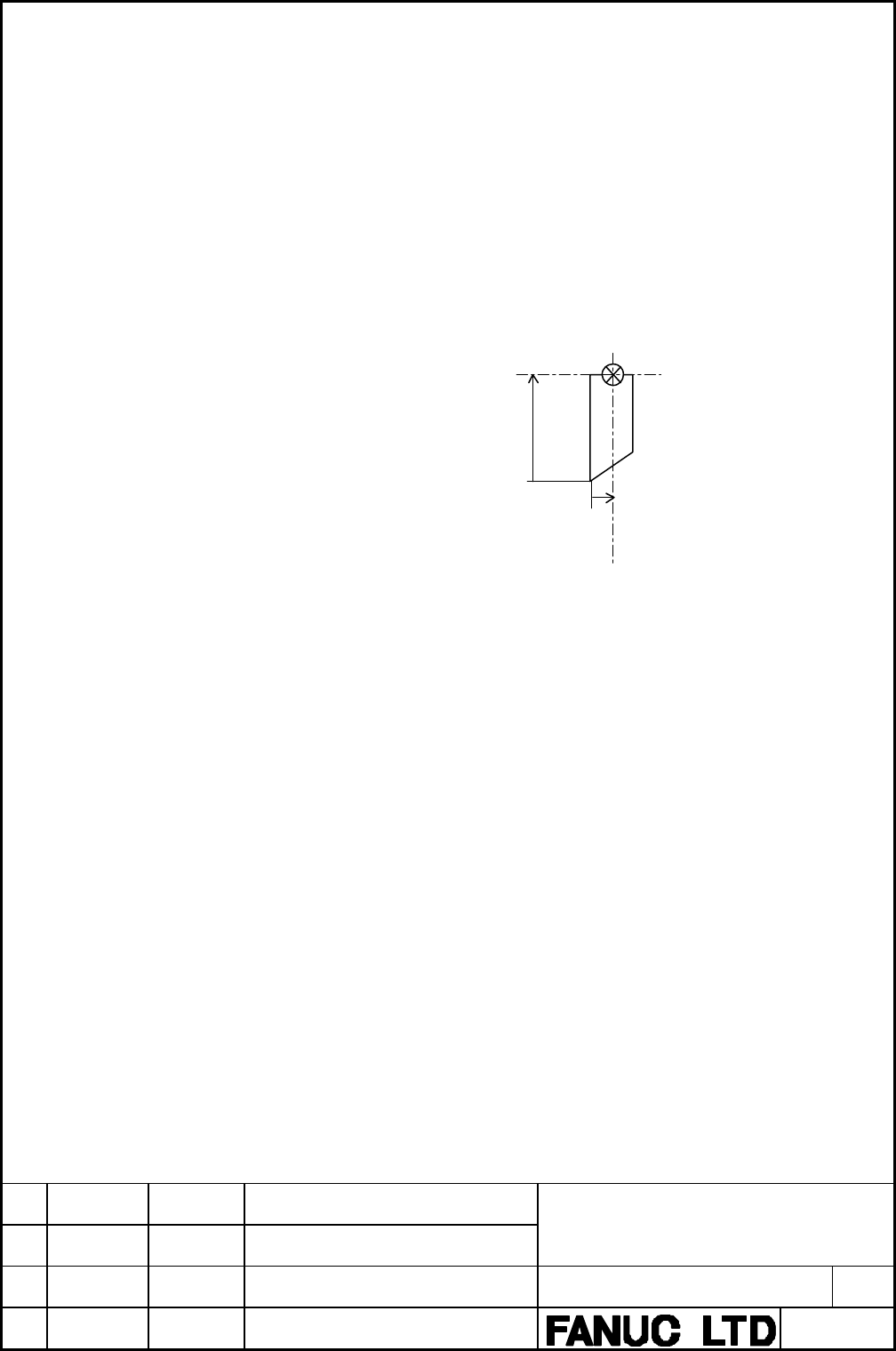

The case where the following tools are measured in left (B-90°) is described
as an example.
Diameter value: 80.000
Radiousvalue: 40.000
Diameter value: 260.000
Radious value: 130.000
