Compound Machining Additional Manual Page 67

Additional Manual
09 00.11.21 K.Yamamuro Revised to edition 09
08 00.06.22 T.Watanabe Revised to edition 08 T.Endo
01 99.03.10 K.Yamamuro New-registered T.Endo
A-63537E
ED DATE DESIG.
DESCRIPTION 67/134
SHEET
TITLE
FANUC Series 16i/18 i -TA
Compound Machining Function
TITLE
CUST.DRAW.NO.

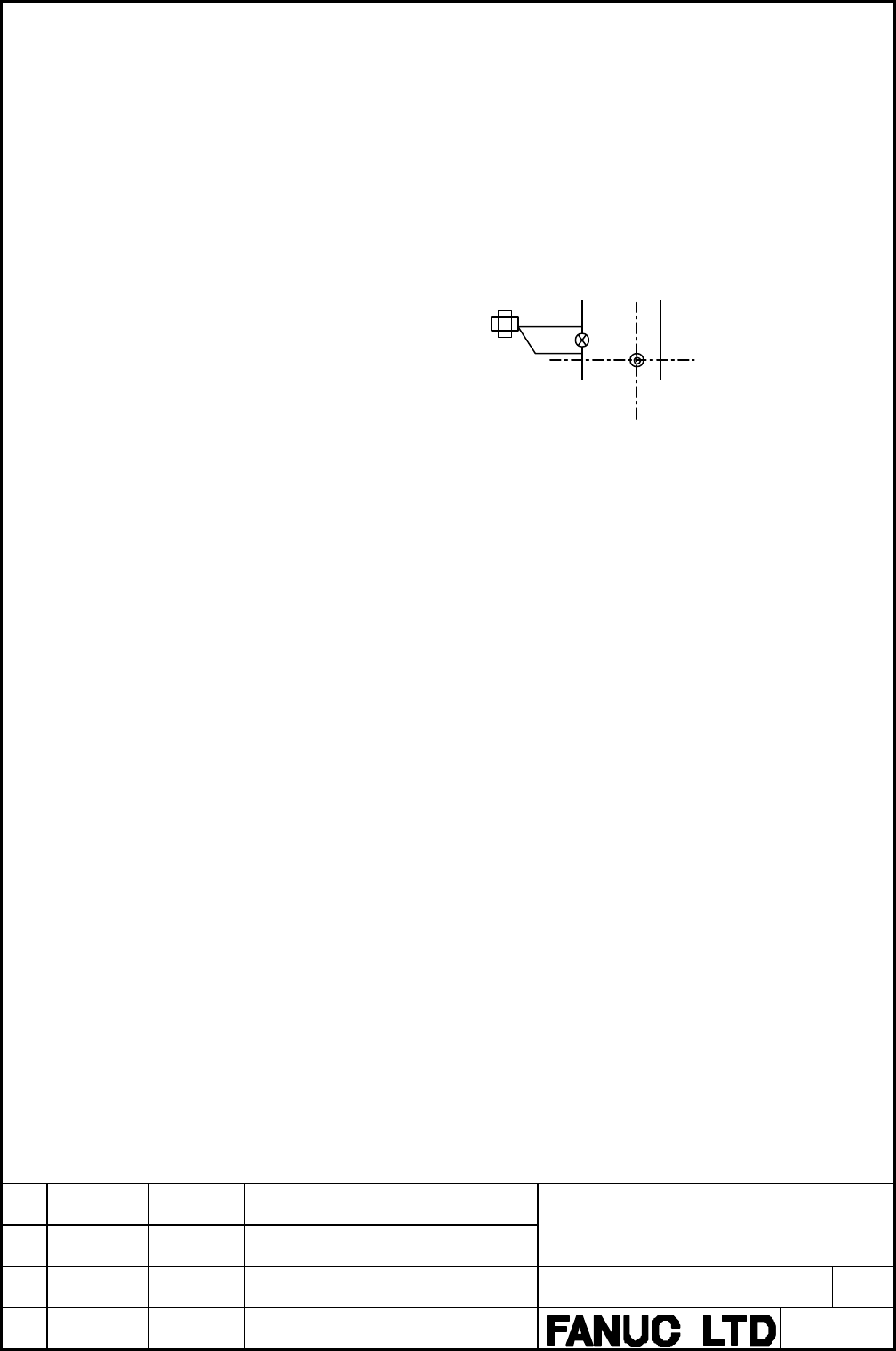

1. B axis is rotated to –90 degrees.
2. The bit 0 of R address of this signal specified with the parameter 13040 is
set to “1”.
3. Select manual handle mode or manual continuous feed mode and set the
tool compensation value write mode select signal GOQSM to “1”.
4. Select a tool to be measured and move the cursor to the desired offset
number by page key and cursor key.
5. Near the tool to the sensor by manual operation and place the tool edge to
a contacting surface of the sensor by manual.
