3.3.6 Displaying and Setting Tool Life Management Data
Tool life data can be displayed to inform the operator of the current state of
tool life management. Groups which require tool changes are also displayed.
The tool life counter for each group can be preset to an arbitrary value. Tool
data (execution data) can be reset or cleared. To register or modify tool life
management data, a program must be created and executed.
1. Press function key [OFFSET]
2. Press the continuous menu key [+] to display chapter selection soft key
[TOOLLF].
3. Press soft key [TOOLLF].

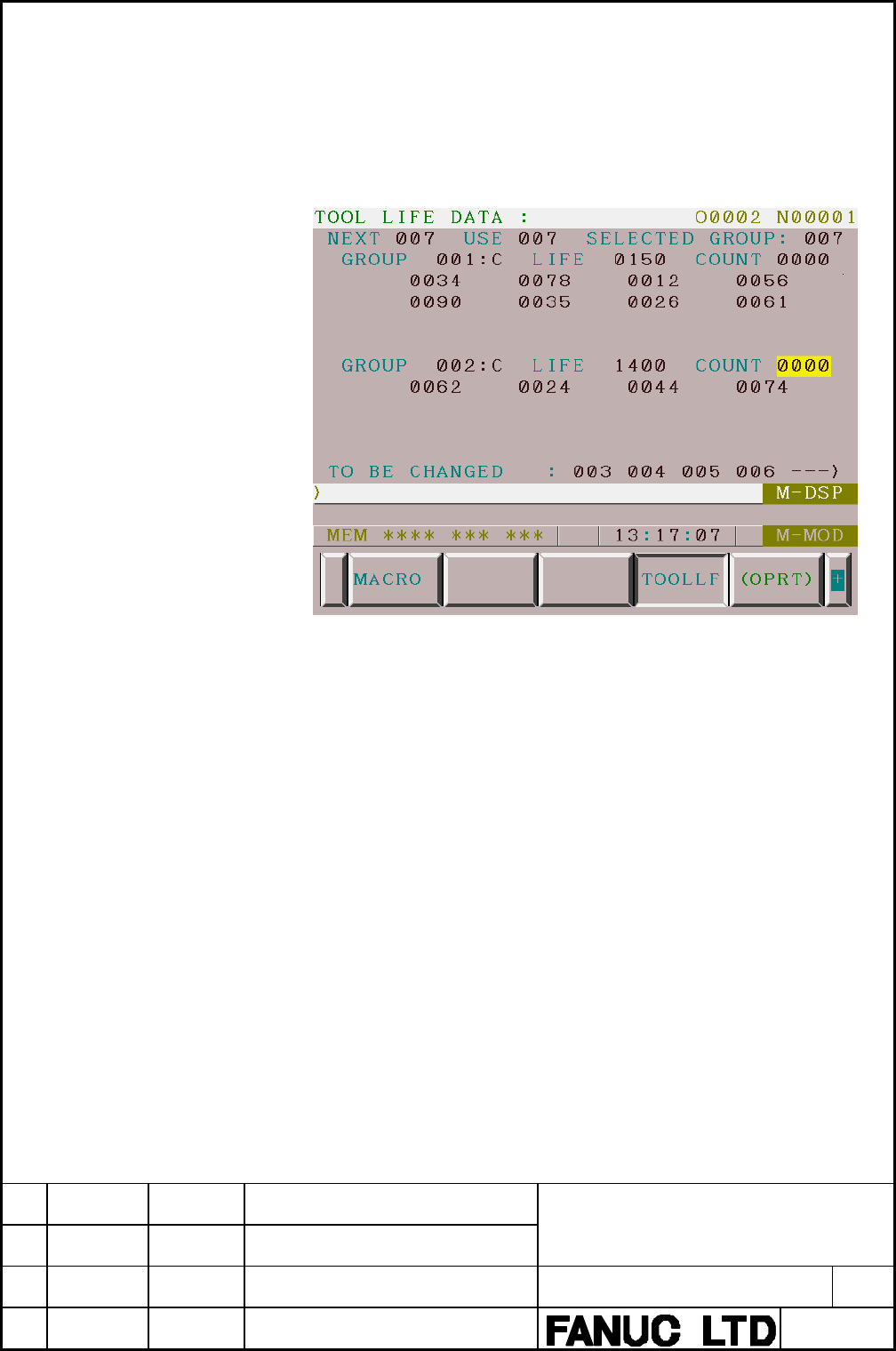

4. One page displays data on two groups. Pressing page key “↑” or “↓”
successively displays data on the following groups. Up to four group
numbers, for which the tool change signal is being issued, are displayed at
the bottom of each page. An arrow shown in the figure is displayed for five
or more groups, if exists.
5. To display the page containing the data for a group, enter the group
number and press soft key [NO.SRH]. The cursor can be moved to an
arbitrary group by pressing cursor key “↑” or “↓”.
6. To change the value in the life counter for a group, move the cursor to the
group, enter a new value (four digits), and press [INPUT]. The life counter
for the group indicated by the cursor is preset to the entered value. Other
data for the group is not changed.
