3.PERIPHERAL EQUIPMENT CONTROL HANDLING B-65395EN/01

- 102 -

3.5 REFERENCE POSITION RETURN FUNCTION WITH DOGS

3.5.1 Explanation of Function

This function moves the machine movable part automatically or

manually in a specified direction to return to a reference position. This

method of reference position return is referred to as the grid method.

With this method, a reference position is determined by an electronic

grid position determined by the one-rotation signal of a position

detector.

The deceleration signal for reference position return (*DEC) is placed

in the same position as the high-speed interlock signal (*RILK) on the

built-in DI. So, when the reference position return function with dogs is

used, the high-speed interlock signal (*RILK) cannot be used.

3.5.1.1 Reference position return operation (grid method)

The machine movable part moves by rapid traverse when the jog feed

mode is set, 4 is set as function code, 15 is set as command data 1, and

feed toward a reference position is specified using the feed axis and

direction select signal (+X or -X).

If the deceleration signal for reference position return (*DEC) is set to 0

because a deceleration limit switch is pressed, the feedrate is reduced,

then movement continues at a low constant feedrate.

When an electronic grid position is reached after the deceleration limit

switch is released and the deceleration signal for reference position

return is set to 1 again, feed operation stops. At this time, the reference

position return completion signal (ZPX) is set to 1.

A reference position return direction can be set in a parameter.

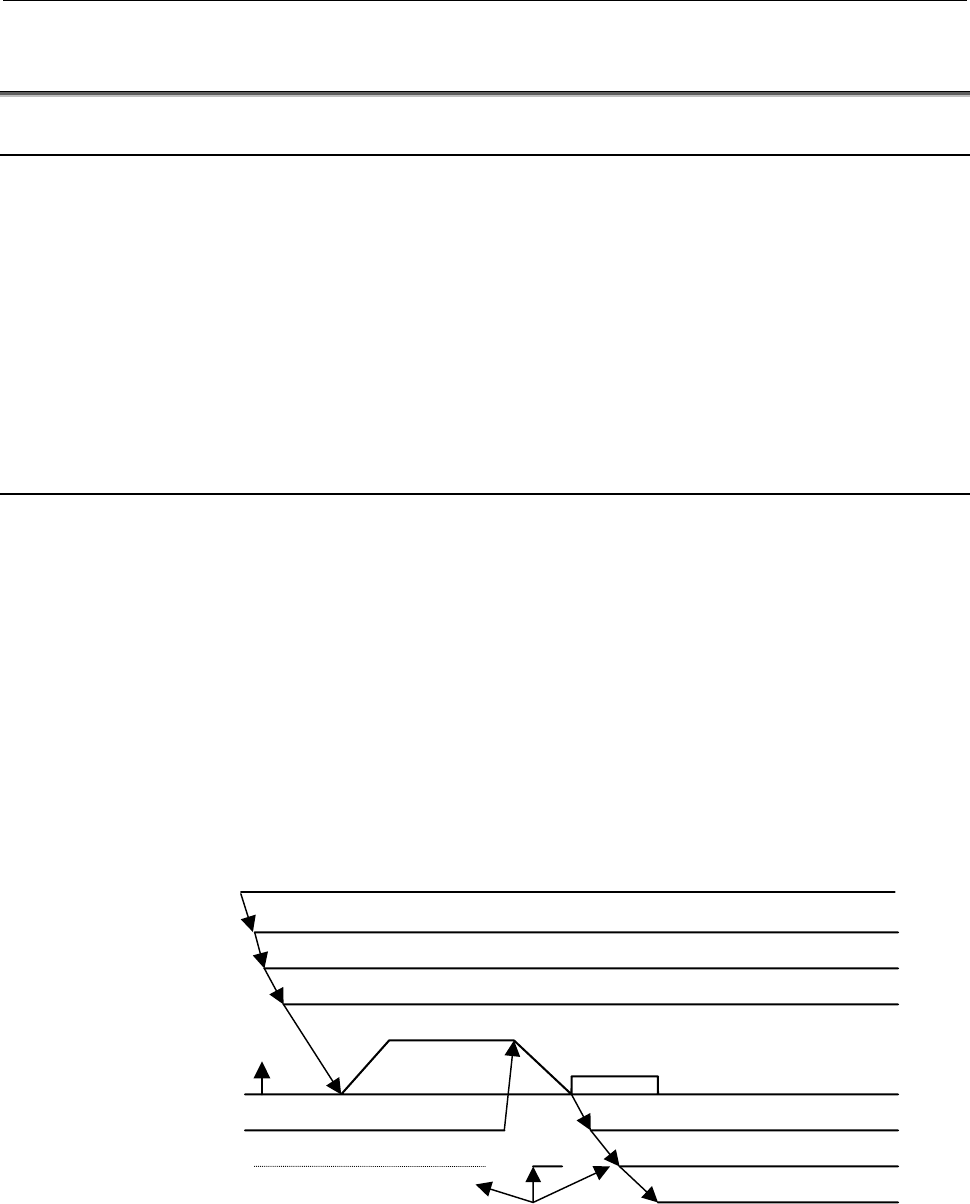

The operation described above is shown in the timing chart below.

+X/-X

Function code = 4

Command data 1 = 15

Jog feed mode

Rapid traverse

rate

Each rotation of the detector

ZPX

*DEC

Grid (one-rotation signal)
