SERVO AMPLIFIER Beta i series Maintenance manual Page 238

Maintenance manual

Page of 366

/ 366

3.ACTION AGAINST NOISE TROUBLESHOOTING B-65395EN/01

- 206 -

3.2 NOTES ON SELECTING THE SPARK KILLER

• Use a spark killer consisting of a resistor and capacitor in series.

This type of spark killer is called a CR spark killer.(Use it under

AC)

(A varistor is useful in clamping the peak voltage of the pulse

voltage, but cannot suppress the sudden rise of the pulse voltage.

FANUC therefore recommends a CR spark killer.)

• The reference capacitance and resistance of the spark killer shall

conform to the following based on the current (I (A)) and DC

resistance of the stationary coil:

❏ Resistance (R) : Equivalent DC resistance of the coil

❏ Capacitance (C) :

(µF)

where I : Current at stationary state of the coil

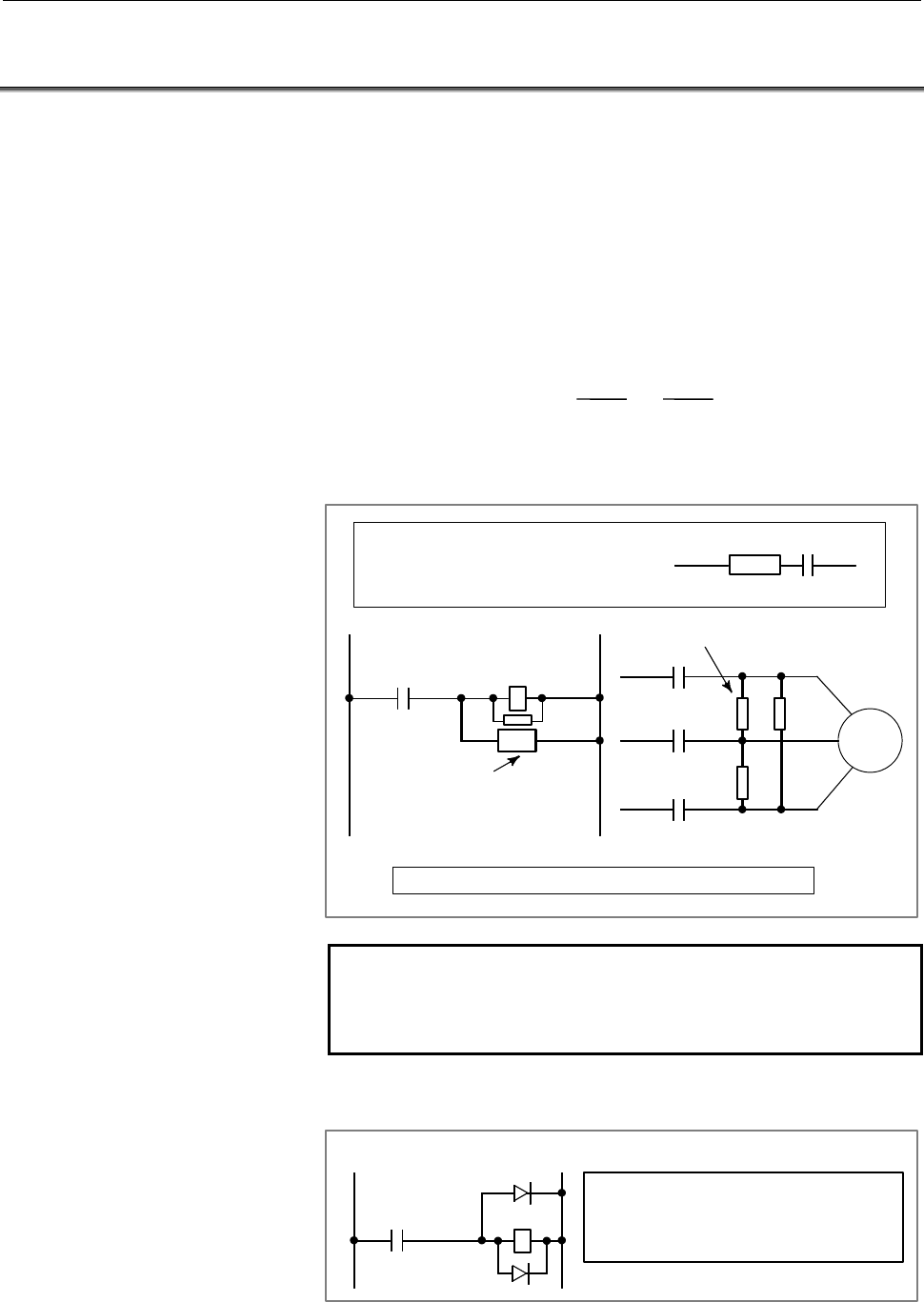

Equivalent circuit of the spark killer

R C

Spark killer

Motor

C relay

Mount the noise eliminator near a motor or a relay coil.

NOTE

Use a CR-type noise eliminator. Varistor-type noise

eliminators clamp the peak pulse voltage but cannot

suppress a sharp rising edge.

• Diode is used for direct-current circuits

Use a diode which can withstand a voltage

up to two times the applied voltage and a

current up to two times the applied current.

Diode

DC relay
