B-65395EN/01 APPENDIXD.POWER MATE CNC MANAGER FUNCTIONS

- 307 -

Press the next-menu key.

[ ][MEMDMP][ ][ ][ ]

3 Press the [MEMDMP] soft key to display:

[ ][ ][ ][CANCEL][EXEC ]

Press the [EXEC] soft key.

While information is being output, the indication DUMP

blinks on the message line.

The following shows the convention of naming files for saving

information.

O+Program number.PMM

Program number = [P8760 setting] + [Group number n]*10 + 9

[Example]

When P8760 is 8000 and a group number is 1, the file name

is:

O8019.PMM

The group number n is a number in ”group n” displayed in

the title of a servo amplifier module.

Information is always saved to the memory card, regardless

of the settings of bits 1 and 2 of parameter P960.

D.1.5.4 Absolute Coordinate

The current position can be displayed using a workpiece coordinate

system. The absolute coordinate screen appears when the <POS> soft

key is pressed for the first time after the power is switched on.

(1) Display operations

Pressing the [POS] function selection soft key displays the

following soft key menu:

[WORK][ ][MACHIN][ ][ ]

Pressing the [WORK] soft key displays the absolute coordinate

screen.

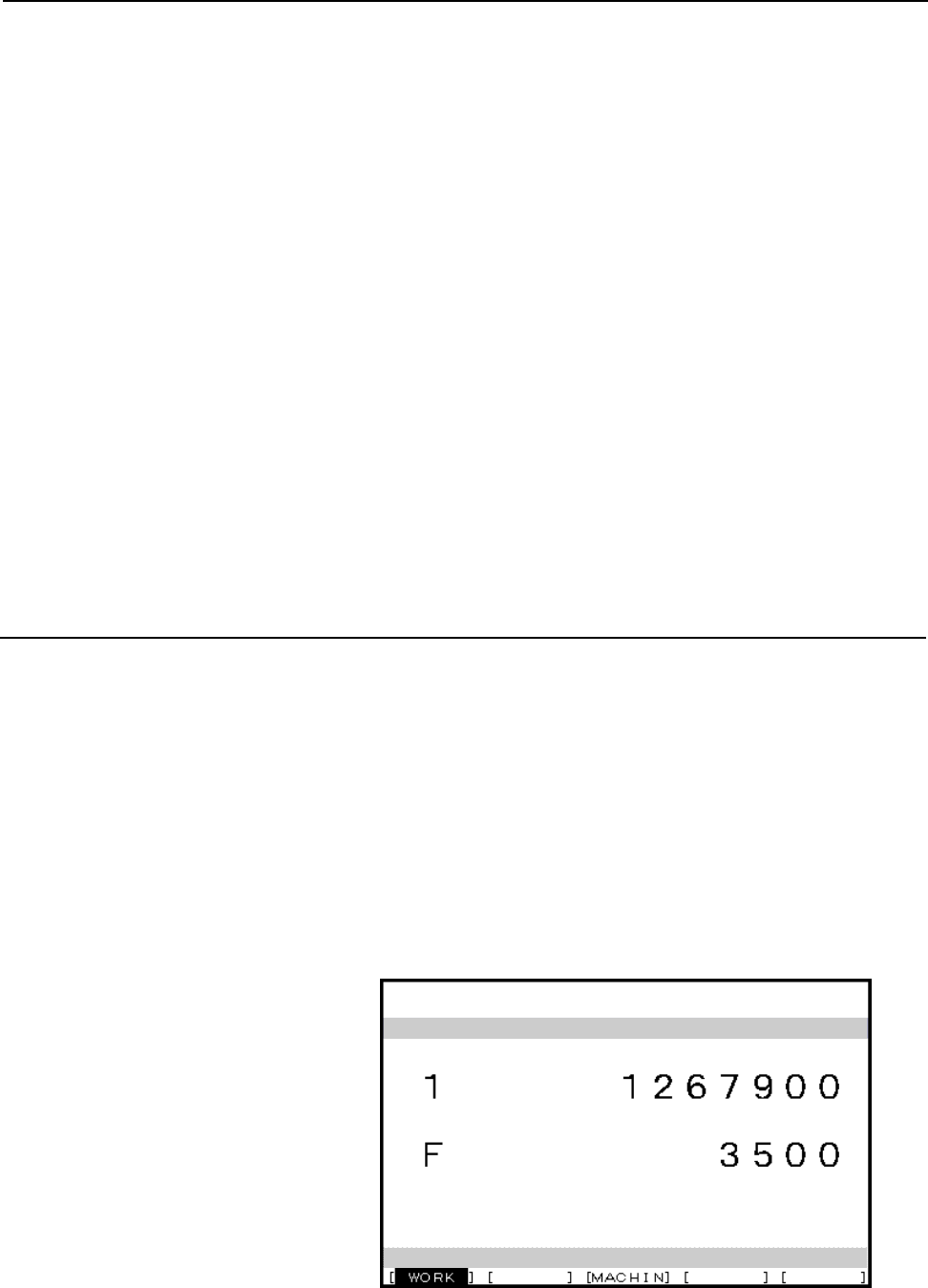

(2) Displays

ＰＯＷＥＲ　ＭＡＴＥ　ＣＮＣ　ＭＡＮＡＧＥＲ

ＰＯＳＩＴＩＯＮ（ＷＯＲＫ）

ＳＥＬＥＣＴ　ＡＣＴＩＶＥ　ＳＬＡＶＥ［＞］

１．ＧＲＯＵＰ０　／βｉ

1 : Coordinate F: Actual speed
