B-65395EN/01 START-UP PROCEDURE 5.PERIODIC MAINTENANCE OF SERVO AMPLIFIER

- 23 -

WARNING

1 When using the built-in batteries

(A06B-6093-K001), do not connect them to the BAT

(B3) of connector CXA19A/CXA19B.

The output voltages from different SVM batteries

may be short-circuited, resulting in the batteries

becoming very hot.

2 Do not connect more than one battery to the same

BAT (B3) line. If the output voltage is different

between the batteries, they may be short-circuited,

resulting in the batteries becoming very hot.

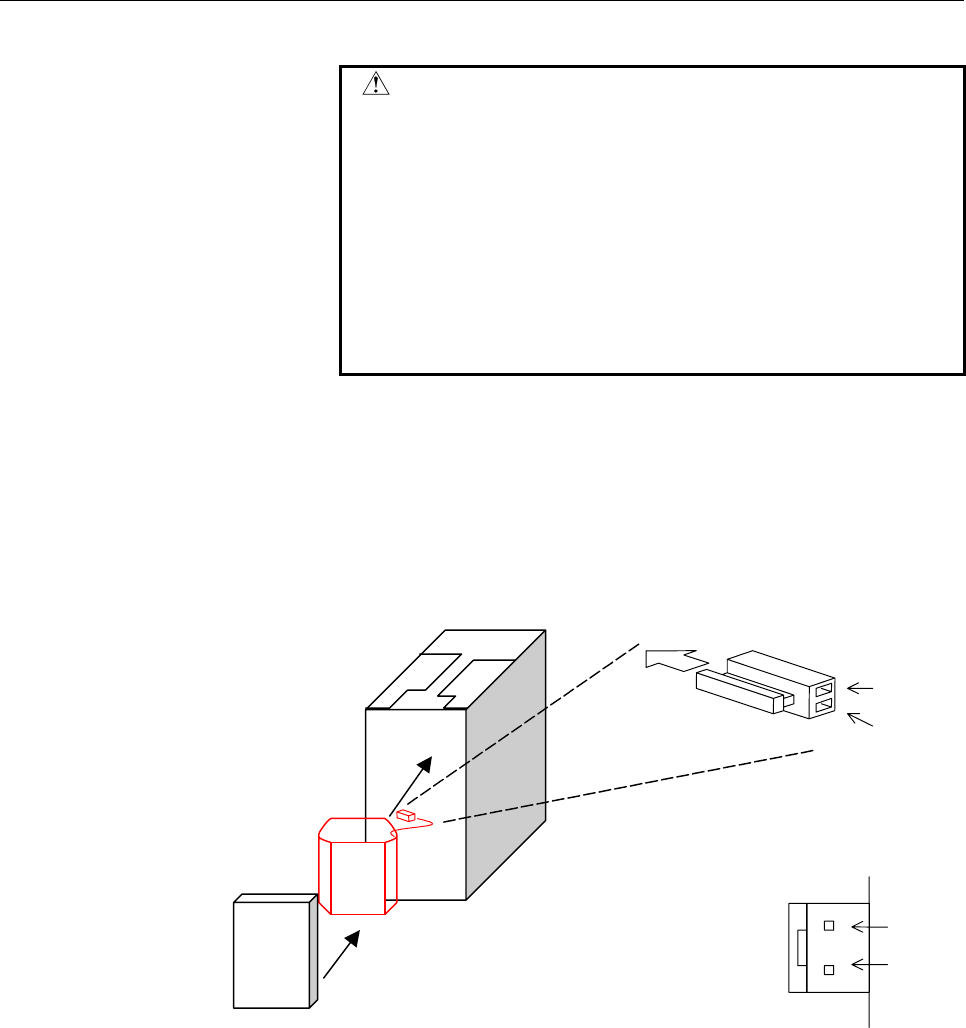

- Installation procedure for the battery

⋅ SVM1-4i, SVM1-20i

(1) Install the battery in the SVM.

(2) Install the battery cover.

(3) Attach the battery connector to CX5X of the SVM.

Battery

SVM

Battery cover

Inserting direction

Red : +6V

Black : 0V

CX5X

+6V

Connector

Cable side
