B-65395EN/01 HANDLING 3.PERIPHERAL EQUIPMENT CONTROL

- 103 -

A gradual stop occurs if a mode other than the jog feed mode is selected

or the feed axis direction command signal (+X or -X) is turned off

during reference position return. Reference position return must start at

a point sufficiently away from a deceleration area and must be

performed in the direction toward the reference position. The

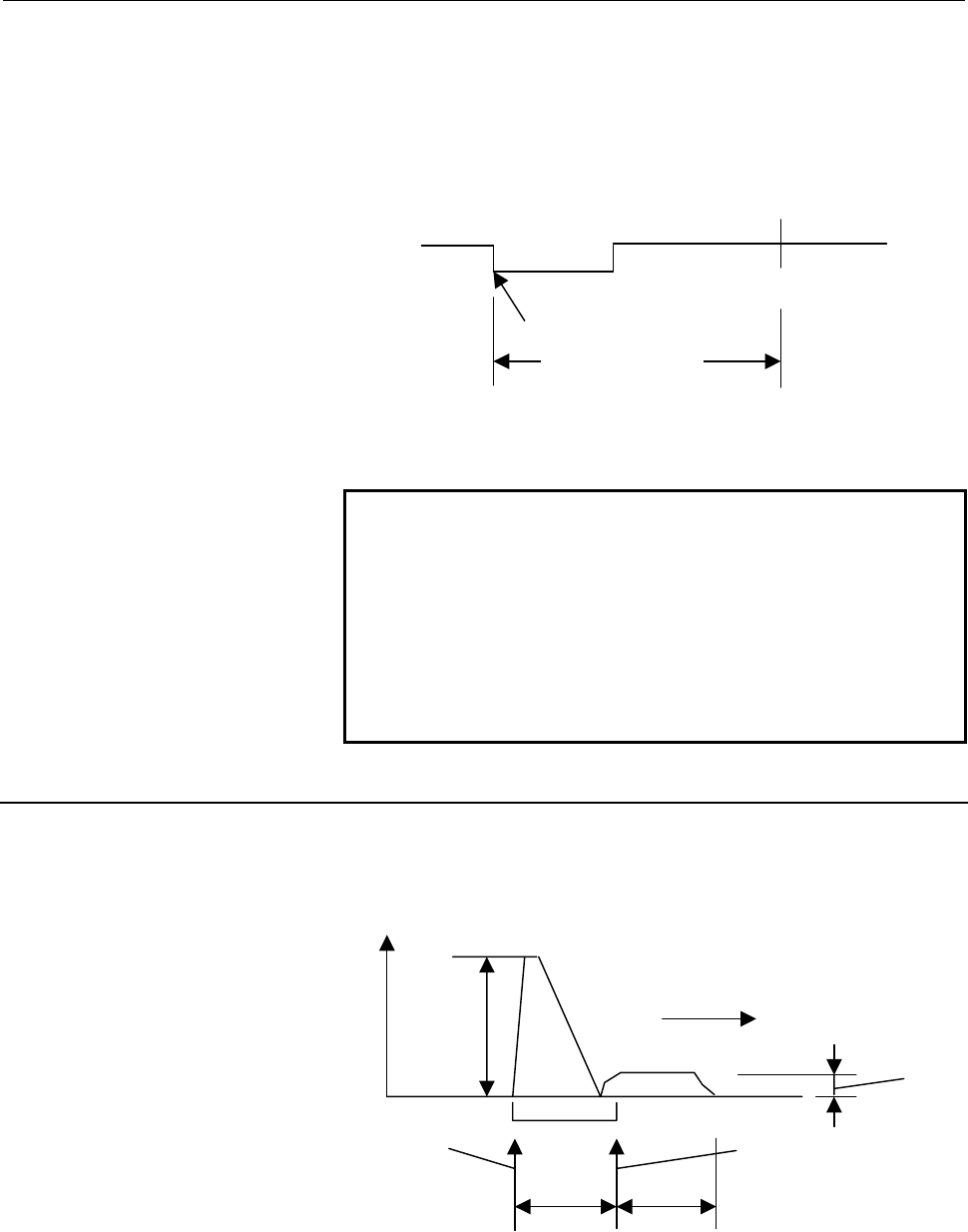

deceleration area is as shown below.

Point where

*DEC is released

Reference position

Deceleration area

A low constant feedrate after deceleration is set using parameter No.

054.

NOTE

1 If the direct command interface is used, select the

AUTO mode and input 60H as function code, then

invert the EBUF signal. Then, the machine movable

part moves by rapid traverse for reference position

return operation.

2 If a reference position is already established, the

machine is always positioned by rapid traverse at

the reference position.

3.5.1.2 Deceleration limit switch installation condition

When a deceleration limit switch for reference position return is

installed, the condition shown below must be satisfied.

Deceleration limit

release point

Deceleration limit

operation point

Reference position

Return direction

Feedrate
