D.POWER MATE CNC MANAGER FUNCTIONSAPPENDIX B-65395EN/01

- 314 -

• Setting a parameter

You can directly set an I/O Link β parameter of the slave from the

CNC.

1 Select a desired parameter using either of the above methods.

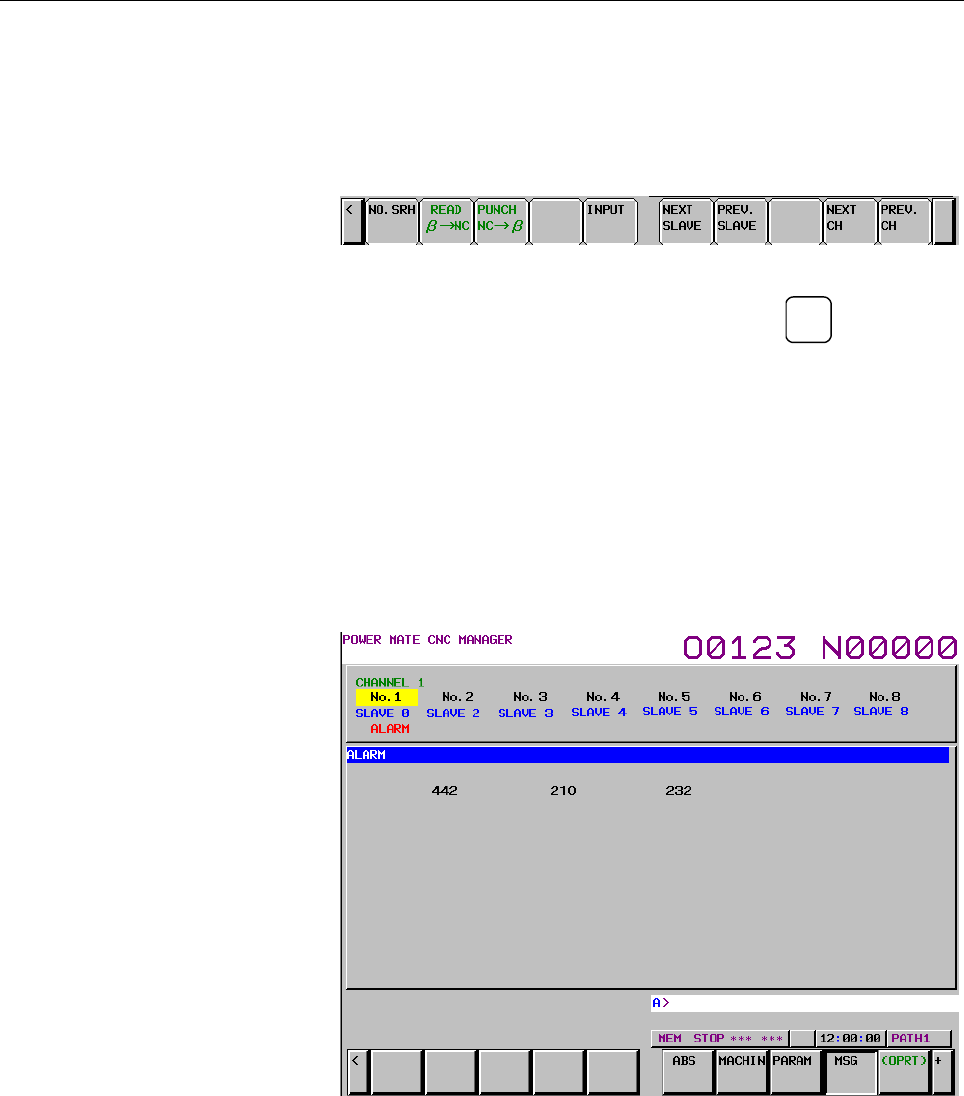

2 Press the [(OPRT)] soft key. The following soft keys appear:

3 Enter setting data.

4 Press the [INPUT] soft key or MDI key

INPUT

Alarm screen

If an alarm is issued for the slave, “ALARM” is displayed in the slave

status field in the upper section of the screen.

At this time, you can display the alarm screen to check the details of the

alarm.

Up to 40 alarm codes are displayed on the screen.

- Display method

Press the [MSG] soft key. On the screen, only error codes are

displayed.

Example of displaying alarms for I/O Link β of slave 0
