2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 92 -

2.3.1.7 Setting the signal for the PMC/SD7 type

If you set SD7 for PMC type in [File]-[Project]-[Setting…]-[Setting of

CNC system] tab, the signal setting properties of various dialog boxes

will set SD7 notation signals using area and address properties. At this

time, the bit position specification property used with SBx notation

(this includes 3Xi type) is displayed as input not permitted.

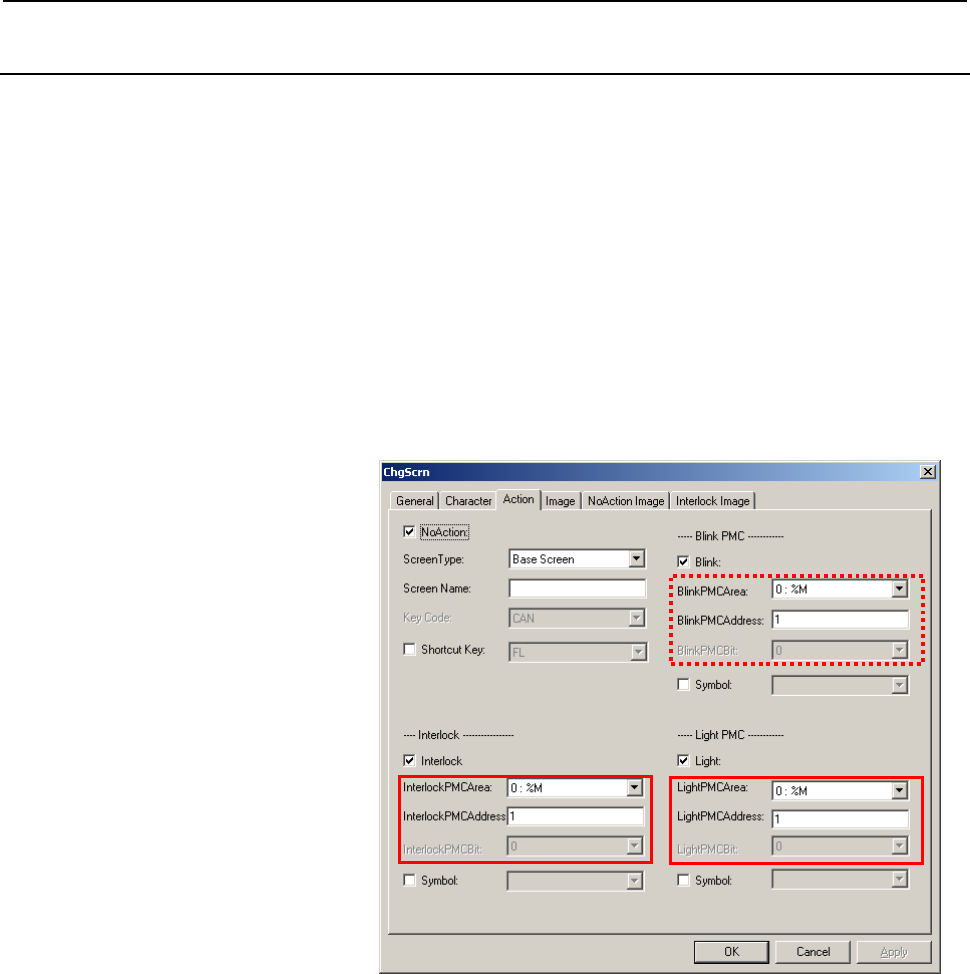

If the signal properties of various dialog boxes are already set in SBx

type signal notation, they are automatically converted into the signal

notation of the SD7 type, like the interlock and lighting signal

properties in the solid-line frame in the figure below. If, during this

automatic conversion, SBx type signal notation cannot be converted

into SD7 signal notation, the properties for area and address

specification will be blank like the blinking signal properties in the

broken-line frame in the figure below; set new signals in SD7 signal

notation.

The following is a table of correspondence between SBx notation and

SD7 notation in the PMC signal area selection combo box and a list of

numbers of arguments for specifying signal areas with FP function

arguments.
