B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 101 -

Popup screen to be called from a base screen

A popup screen may also have a change report area. If a popup

screen does not use a change report area, it reports the data

change state using the change report area of the base screen from

which the popup screen was called. For this reason, a input

popup screen for character change input in a PMC area character

string indication control etc. must not use a change report area.

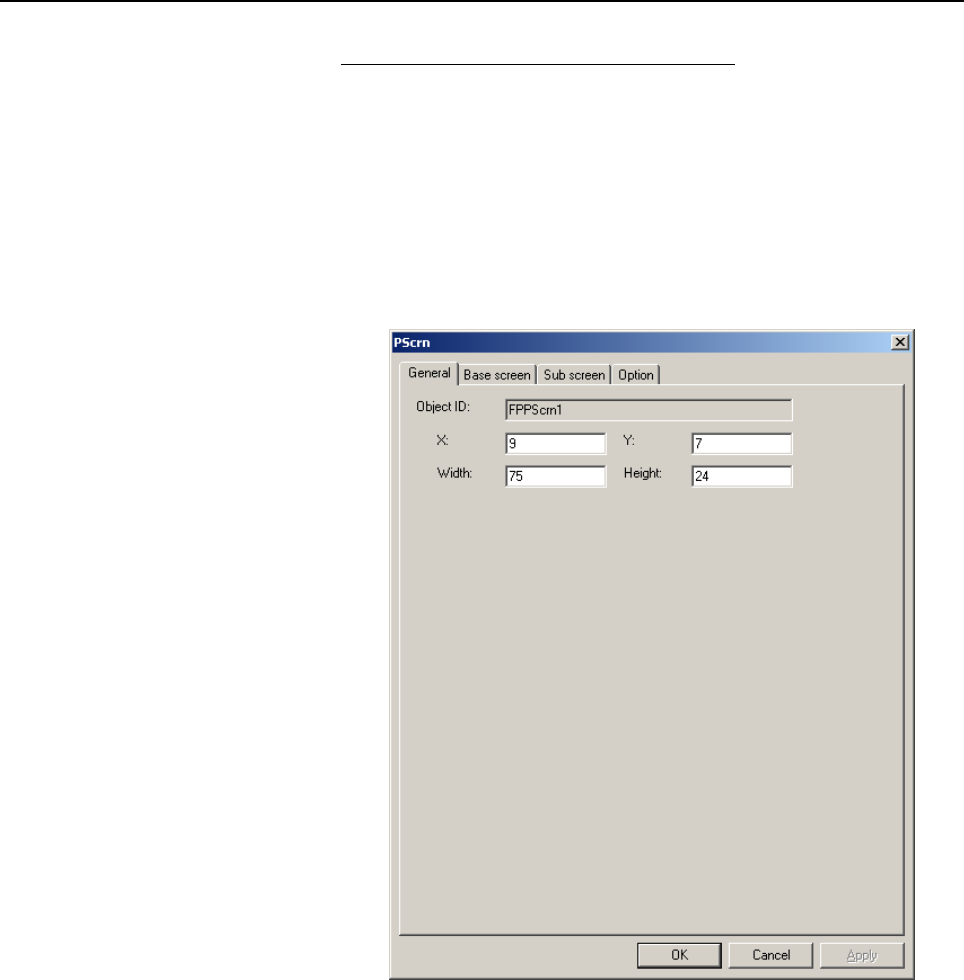

Property Pages

- General

Object ID:

Object ID managed in the form. This ID is automatically

assigned. The user cannot change this ID.

X, Y:

1. Definition of a base screen and sub screens

Coordinates of the upper-left corner of the screen structure

definition control. This control is not displayed on the CNC

screen. This means that any coordinates may be set.

2. Definition of a popup screen

Define the display position of the screen.

Width, Height:

Width and height of the rectangle in which the control is placed.

If a popup screen is defined, the size of the display area of this

screen is indicated.
