FANUC Picture Operators manual Page 152

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 138 -

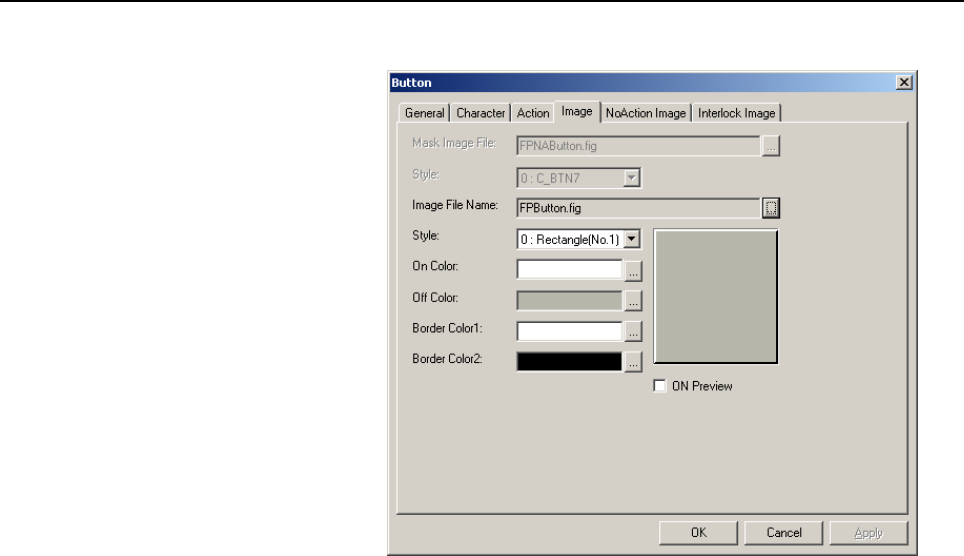

- Image
Mask Image File:
The FIG file holding the button figures to be used when the No
Action check box in the Action tab is checked can be selected.
Style:
Select a type of button figure registered in Mask Image File.
Image File Name:
The FIG file holding the button figures to be used when the No
Action check box in the Action tab is not checked (that is, when
the function is enabled) can be selected.
Style:
Select a type of button figure registered in Image File Name.
On Color:
Select a color to be used for the light section when the light
section is turned on by the monitor PMC signal or automatically.
Off Color:
Select a color to be used for the light section when the light
section is turned off by the monitor PMC signal or automatically.
Border Color 1:
Select a frame color for the upper edge and left edge of the
button.
Border Color 2:
Select a frame color for the lower edge and right edge of the
button.
On Preview:
Check this check box to confirm the display state on the form
when the button is turned on. When this check box is checked,
the caption display state can also be confirmed on the form. This
property is valid for form display on the personal computer. This
property does not affect the screen display of the CNC.
