B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 95 -

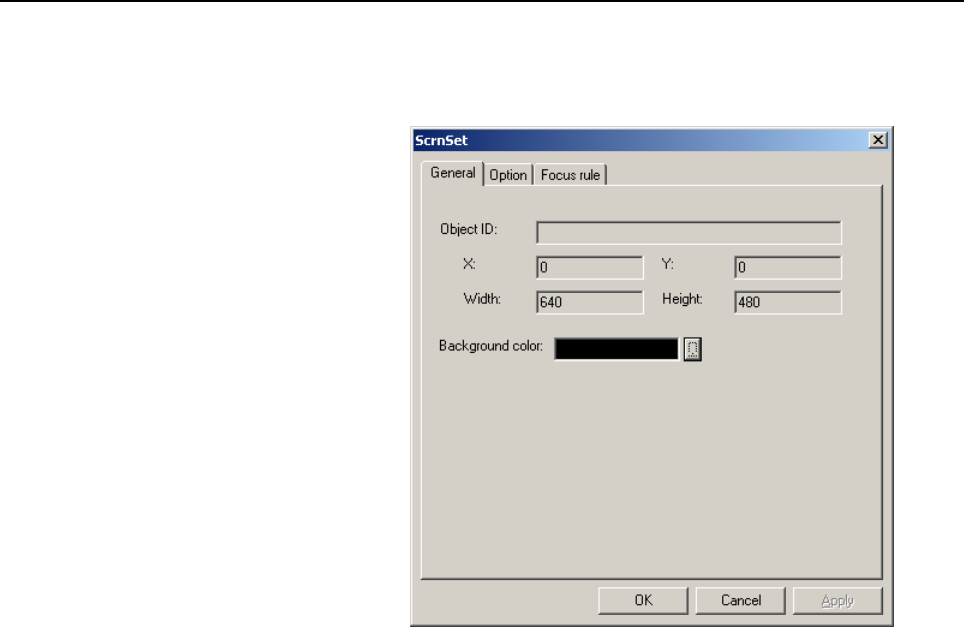

Property Pages

- General

Object ID:

Object ID managed in the form. This ID is automatically

assigned. The user cannot change this ID.

X,Y:

Set the coordinates of the upper-left corner of the screen set

control. This control is not displayed on the CNC screen. This

means that any coordinates may be set.

Width, Height:

Set the width and height of the screen set control.

Background color:

Specify the background color of the screen form. The

background color is enabled for a base screen on the CNC screen.

The background color of the sub screen is not displayed on the

CNC screen, so separately create the background using the

rectangle drawing control or label control.
