B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 171 -

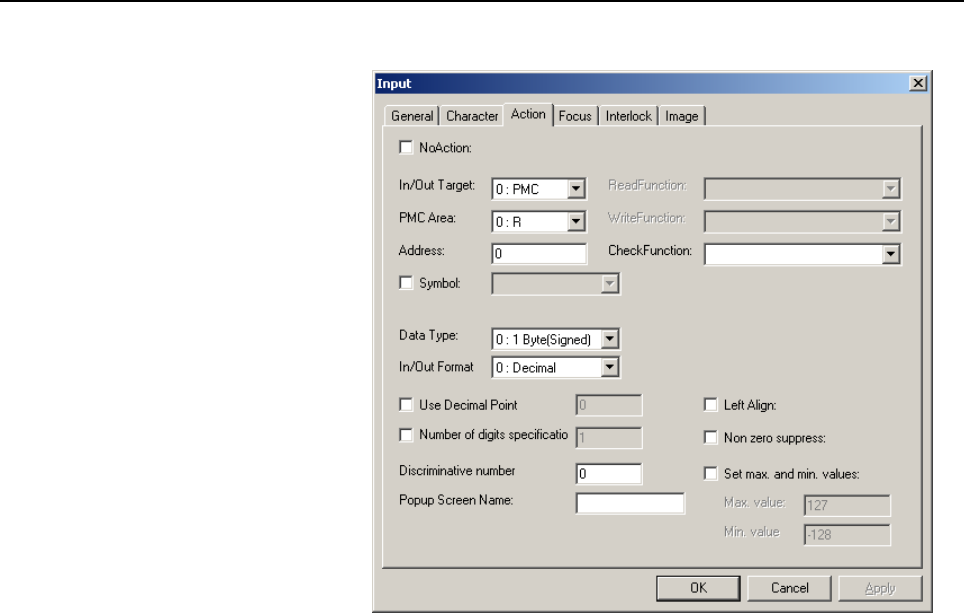

- Action

No Action:

Check this check box to disable the function of the control.

The control can be placed on the form, but can be disabled, in

which case the display is embedded.

Set the image for no action set in the Image tab.

In/Out Target:

Select a numeral data I/O destination.

I/O by the PMC area or the FP function is selected.

PMC Area:

Specify a type of I/O target PMC address. The following areas

can be specified: R, D, K, X, Y, G, F, E(PMC-SB7)

Address:

Specify an I/O target address.

ReadFunction:

Select a function for reading a numeral to be indicated.

WriteFunction:

Select a function for writing input data from the Key Input.

CheckFunction:

With a value returned from the function set in this field, the

display color of the light section can be controlled. The light

section is turned on when a value other than 0 is returned.

Data Type:

Specify the data size and numeral attribute of an I/O target.

Numerals are stored in binary or floating.

0: 1 Byte(Signed)

1: 1 Byte(Unsigned)

2: 2 Byte(Signed)

3: 2 Byte(Unsigned)

4: 4 Byte(Signed)
