2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 52 -

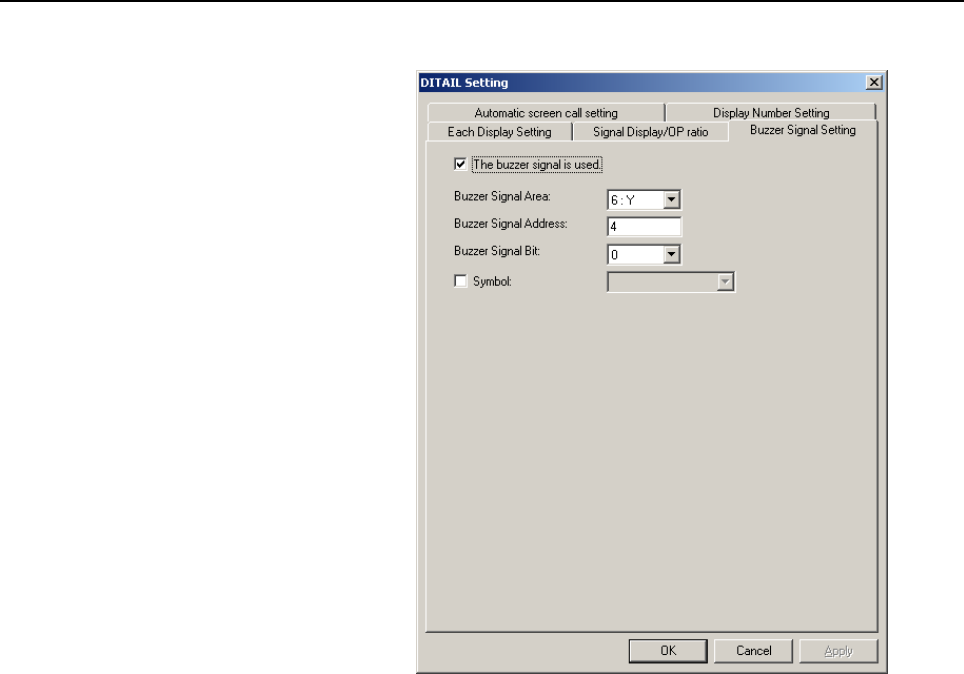

(5) Buzzer Signal Setting

If a touch operation is performed while a custom screen created with

FANUC PICTURE is displayed, the touch operation can be output to

the PMC signal area. With this output signal, for example, the external

buzzer can be sounded. However, this signal is not posted when a

screen provided by the system on the CNC or PMC side is displayed.

The buzzer signal is used.:

Check this box to use the function for posting a touch operation

to the PMC signal area.

Buzzer Signal Area:

Buzzer Signal Address:

Buzzer Signal Bit:

Specify the type, address, and bit position of a PMC signal area

to be used for the touch operation notification signal mentioned

above.
