2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 70 -

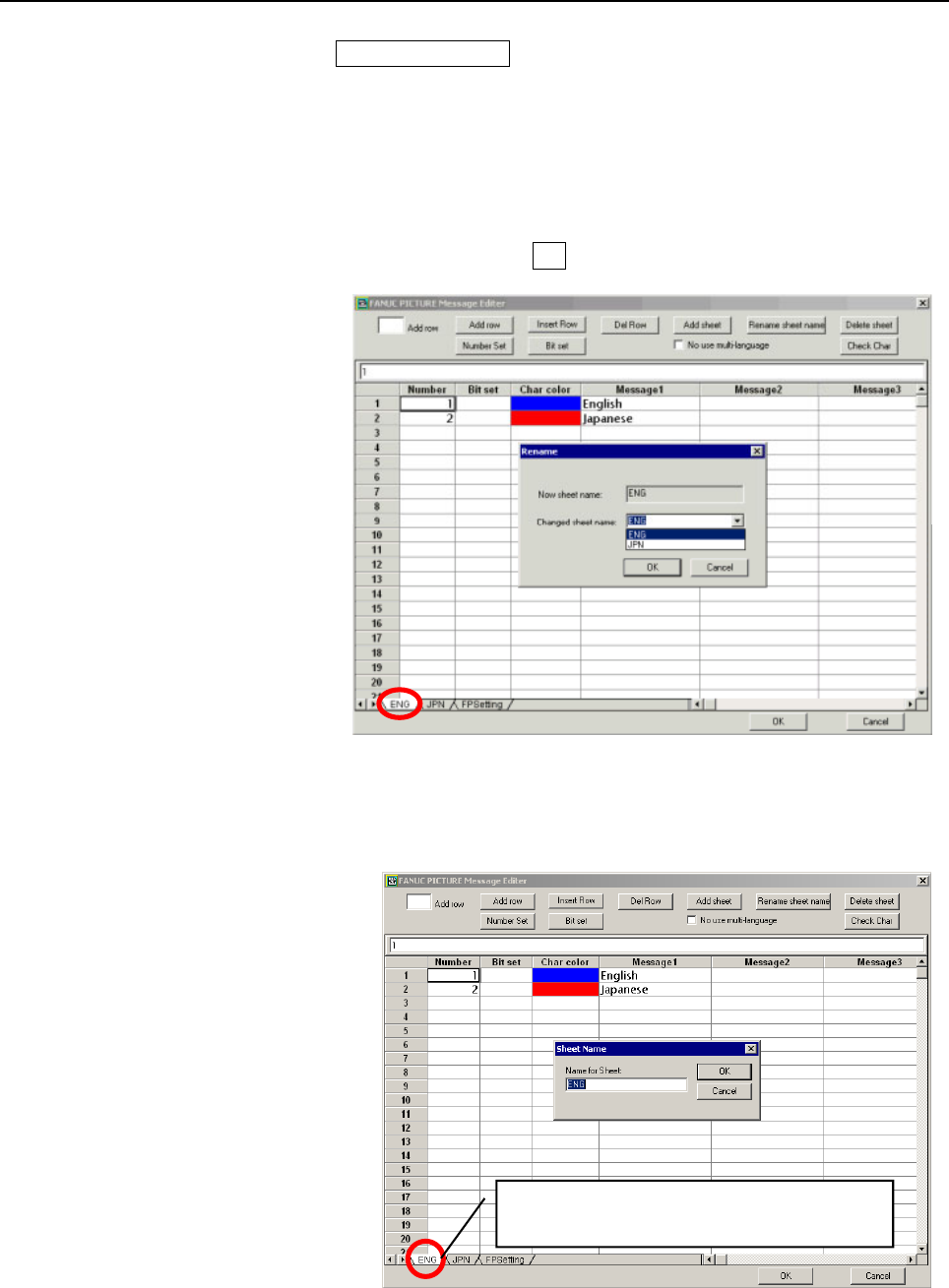

Rename sheet name button :

If, after adding a multi-language message sheet, you rename a

multi-language key with [Setting of project], you must change

the old sheet name to the same name as the new multi-language

sheet name.

Select the tab of the sheet you want to rename by clicking it.

Then, click the Rename sheet name button. From [Changed sheet

name] in the dialog box that appears, select the multi-language

key and click the OK button.

Alternatively, you can directly change the sheet name in the

dialog box displayed by double-clicking the tab of the sheet you

want to rename to the same name as that of the multi-language

key.

Double-click the tab of the sheet you want to

rename to display the sheet name input dialog box.
