FANUC Picture Operators manual Page 278

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 264 -

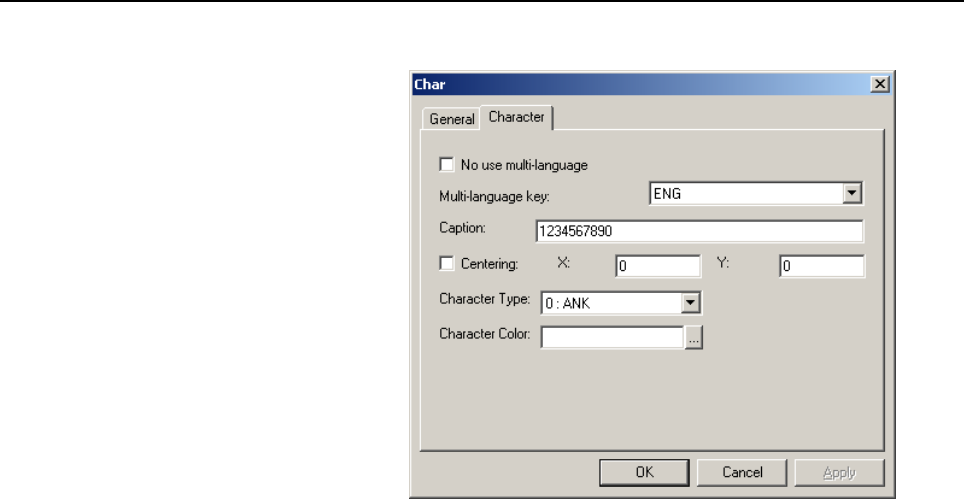

- Character
No Use multi-language:
Multi-language key:
See “Editing multi-language display captions” in Subsection
2.3.1.1, “Description of general property setting items”.
Caption:
Enter a character string to be displayed.
Centering:
Check this check box to automatically center the caption display
position vertically and horizontally in the rectangle of the
control.
X, Y:
Specify the caption display position as relative coordinates in the
rectangle of the control. With respect to the upper-left corner of
the rectangle of the control, specify the coordinate of the
upper-left corner of the character string. If the check box for
automatic centering is checked, coordinates after an automatic
calculation are set.
Character Type:
Specify a character type of the character string to be displayed.
0: ANK (display using a mixture of half-size and double-size
characters)
1: Double size (display using double-size characters for
half-size characters specified for the caption)
2: Quadruple size (display using double height size and double
width size characters)
3: Sextuple size (display using double height size and triple
width size characters)
4: Reduced size (display using characters smaller than
half-size characters)
Character Color:
Specify the character color of the character string to be
displayed.
