2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 194 -

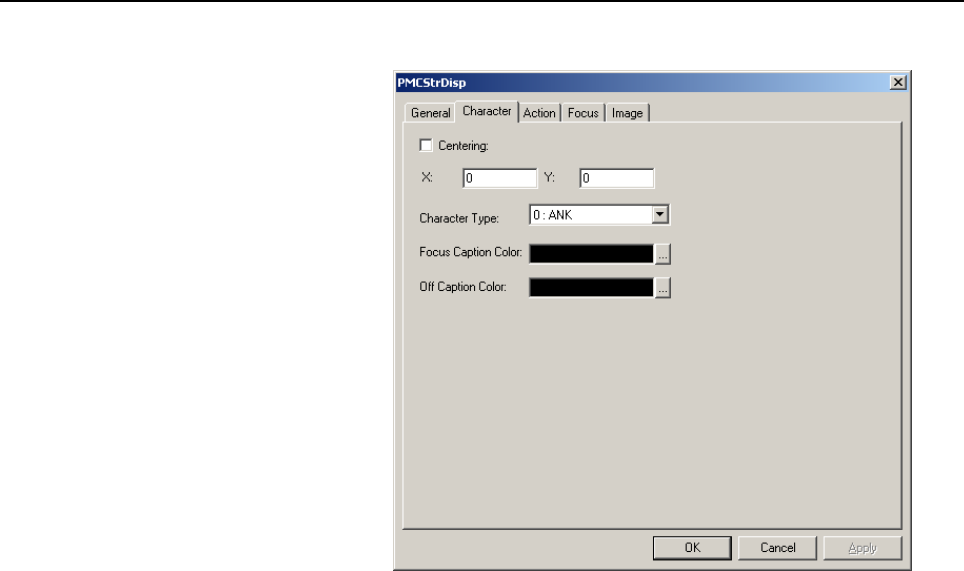

- Character

Centering:

Check this box to center the display position of the PMC area

character string automatically in the vertical and horizontal

directions within the rectangle of the control.

X,Y:

Specify the character string display position by using relative

coordinates within the rectangle of the control. With the

upper-left corner of the rectangle of the control used as the

reference, specify the coordinates of the upper-left corner of the

character string. If you have checked the check box for automatic

centering, coordinates after automatic calculation are set.

Character Type:

Specify the type of character used for character string indication.

0: ANK (displays a mixture of half-size and 2x-size

characters)

1: X2 (Half-size characters set for a caption are displayed as

2x characters.)

2: X4 (displays characters two times larger vertically and

horizontally)

3: X6 (displays characters two times larger vertically and three

times larger horizontally)

4: SMALL (displays characters smaller than half-size

characters)

Focus Caption Color:

Specify the color of a character string to be displayed when the

focus is placed on the character string.

Off Caption Color:

Specify the color of a character string to be displayed when the

focus is not placed on the character string.
