2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 224 -

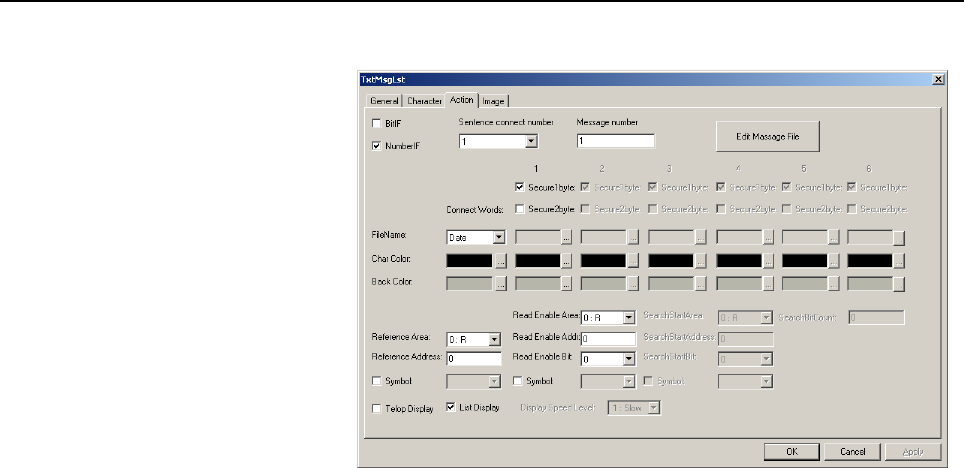

- Action

Bit IF:

Select this option to use a PMC signal bit for the specification of

the text message to be displayed. A specified number of

messages of ON bits that are found from the search start signal

address are listed.

Number IF:

Check this check box to select the number interface to specify

message phrases with numbers.

Sentence connect number:

Specify the number of phrases to make up a single message.

For the number interface, a number 1 to 6 can be specified.

For the bit interface, the number is fixed at 1.

Message number:

Specify the number of messages to be displayed, in the range of

1 to 32.

Edit Massage File:

Click this button to edit the file (.vts file) containing the character

strings to create the messages to be displayed.

For an explanation of how to edit the file, see “Structure of a text

file and editing it” found in the explanation of the text character

string indication control.

* Even if the color of characters in a message file is set, the

specification of 1-6 [Character Color] is used when a

message is displayed with this control.

Connect Words:

Specify the character string to be added to the beginning of a

message. Select one from the combo box.

- Date (2000/06/30)

- Time (16:44)

- Date&Time(2000/06/30 16:44)

- None (no additional character string displayed)

* If date or time is specified, the date or time at the time when

the composite message indication control receives a read

enable signal is displayed.
