B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 289 -

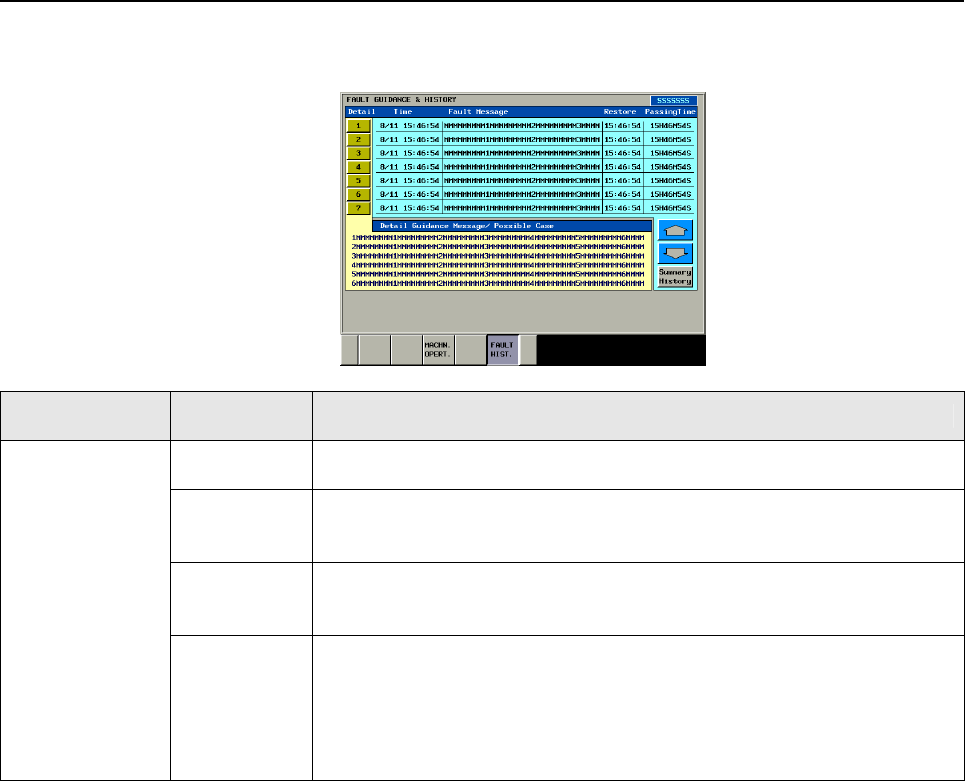

Control placement on a fault guidance and history display parent

screen

Dialog name

Spreadsheet

item name

Setting point

Number

When the number interface is selected for the interface with the message

indication control, register a message number.

Bit Set

When the bit interface is selected for the interface with the message indication

control, register relative bit position numbers in ascending order with the first bit

position of the bit interface being 0.

Char color

Specify a display color for the characters registered with messages 1 to 4

below. The [Set color] dialog box is displayed by double-clicking the left mouse

button.

FANUC PICTURE

Message Editer

Message1 - 4

Enter an alarm message for a fault together with details and action to be taken.

Each cell can hold up to 255 characters. If one cell is insufficient, enter

characters in the next cell for the nth message. Enter “\n” to perform a new line

operation at a desired position.

An alarm title and details are written in separate VTS files. However, pairing

messages are to be written at the same bit specification number.
