B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 9 -

2.2 CONFIGURATIONS AND FUNCTIONS OF BARS

2.2.1 Menu Bar and Tool Bar of FANUC PICTURE

This subsection describes the menu bar configuration and functions of

FANUC PICTURE.

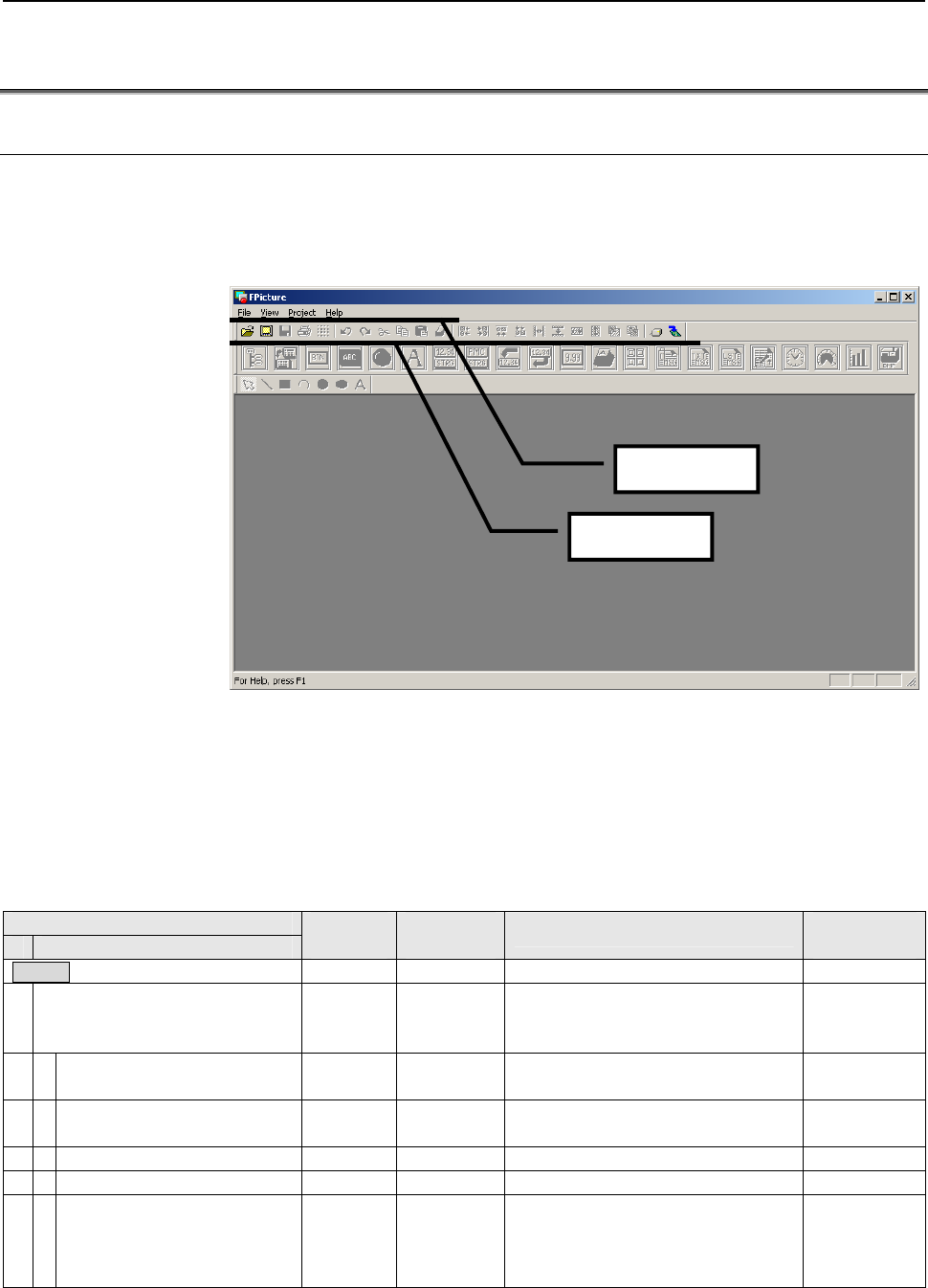

When FANUC PICTURE is started, the screen shown below appears

first.

Explanation

The table below indicates the function/application of each item of the

menu bar.

Each item of the tool bar can be displayed as an independent tool

window.

Each menu item prefixed by an asterisk (*) may not be displayed,

depending on the condition.

Item in the main menu

* Sub menu

Shortcut

key

Icon in the

tool bar

Functions

Chapter of

explanation

[ File ]

Alt+F

Project ►

Submenu related to the creation,

setting, and saving of a project of

custom screens

New…

Creates a project of new custom

screens.

2.2.5

Open

Selects a project of already created

custom screens to be edited.

2.2.6

Save Saves the project being edited.

Close Closes the project being edited.

Setting…

Sets items, such as the PMC,

display unit type, and option

functions, common to a custom

screen to be created.

2.2.7

Menu bar

Tool bar
