FANUC Picture Operators manual Page 174

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 160 -

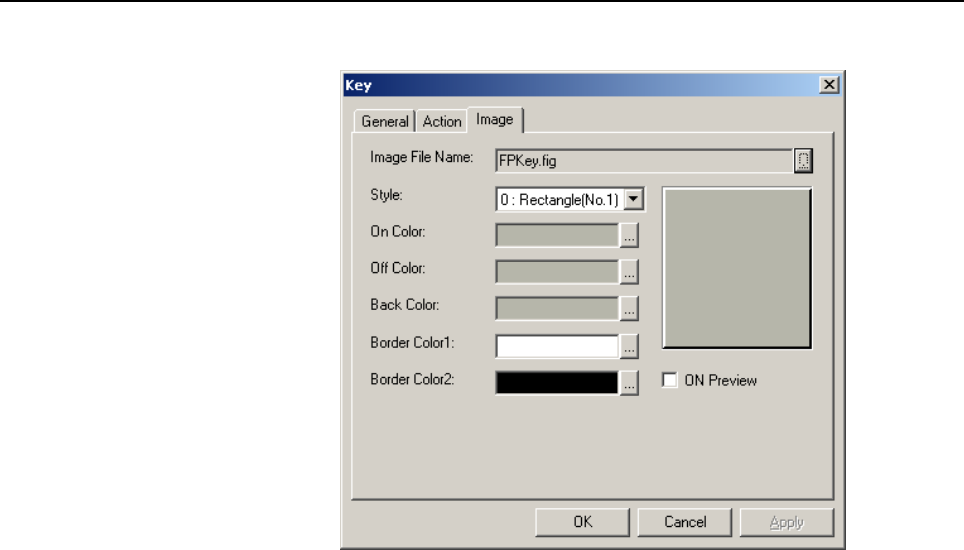

- Image
Image File Name:
The FIG file holding MDI key figures can be selected.
Style:
Select a type of MDI key figure registered in Image File Name.
On Color:
Select a color to be used for the light section when the MDI key
is pressed.
Off Color:
Select a color to be used for the light section when the MDI key
is not pressed.
Back Color:
Specify the background color of the MDI key. This property is
effective when a round figure is selected.
Border Color1:
Select a frame color for the upper edge and left edge of the MDI
key.
Border Color2:
Select a frame color for the lower edge and right edge of the MDI
key.
On Preview:
Check this check box to confirm the display state on the form
when the MDI key is pressed. When this check box is checked,
the key top character display state can also be confirmed on the
form. This property is valid for form display on the personal
computer. This property does not affect the screen display of the
CNC.
