B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 163 -

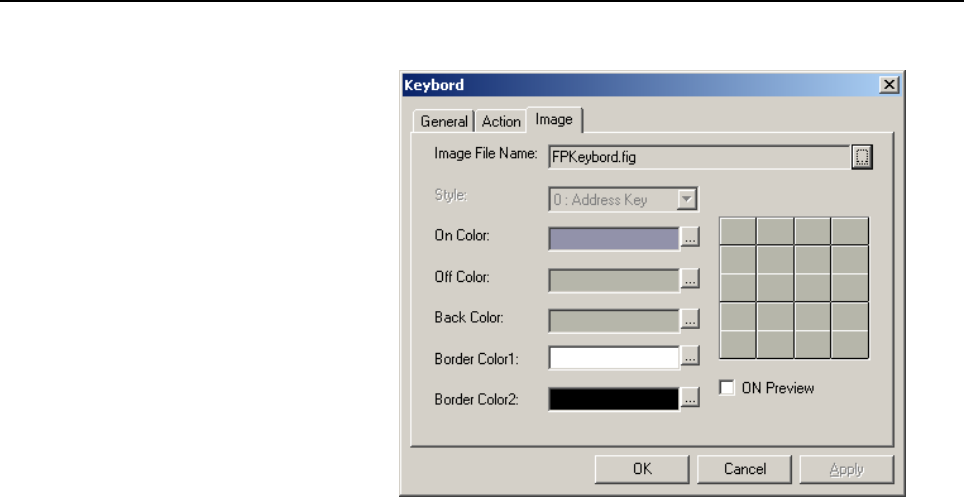

- Image

Image File Name:

A FIG file holding a control figure can be selected.

Style:

Select a type of control figure registered in the “Image File

Name.”

On color:

Select a color to be used for the light section when it is turned on.

Off color:

Select a color to be used for the light section when it is turned

off.

Back Color:

Specify the background color of the control.

Border Color 1:

Specify a frame color for the upper edge and left edge of the

control.

Border Color 2:

Specify a frame color for the lower edge and right edge of the

control.

ON Preview:

Check this check box to confirm the display state of the control

on the form when the keyboard is pressed. When this check box

is checked, numeral indication can also be confirmed on the form.

This property is valid for form display on the personal computer.

This property does not affect the screen display of the CNC.
