B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 141 -

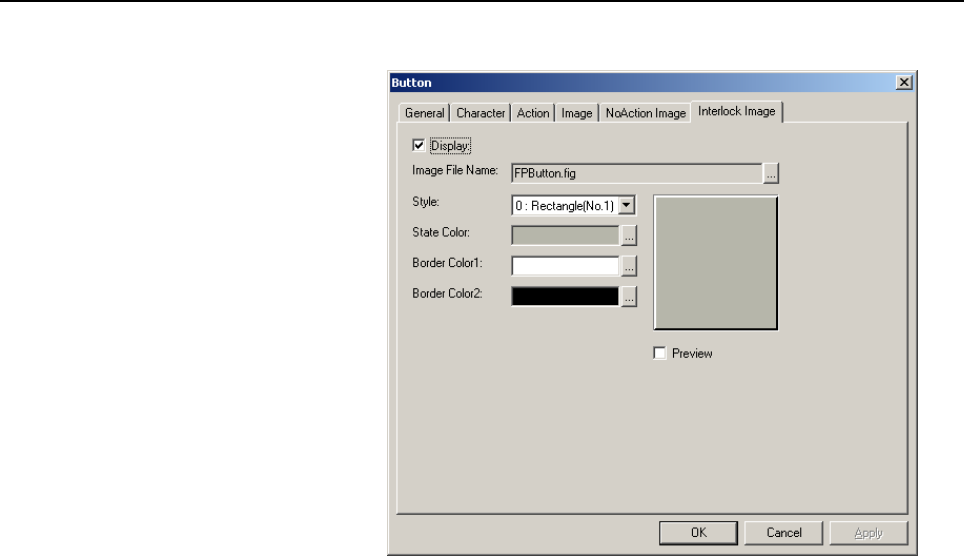

- Interlock Image
This tab is valid when [Interlock] on the [Action] tab is checked.
Display:
Check this check box to change the style indication of an
interlocked button.
When [Interlock Signal] on the [Action] tab is set to ON, the
function of the button control can be disabled and the button
style can be switched to the one that indicates the interlocking
state.
When this check box is checked, the following boxes can be set.
Image File Name:
This box can be used to select the FIG file that contains the
embedded plug styles used when the button control is in the stop
state.
Style:
Select the type of the button styles registered in the file specified
in [Image File Name].
State Color:
Select the color of the indicator lamp section.
Border Color1:
Select the color of the upper and left ends of the button.
Border Color2:
Select the color of the lower and right ends of the button.
Preview:
Check this check box to confirm the style indication of an
interlocked button on the form.
This property is valid for the form display on a PC. This property
does not affect the screen display of the CNC.
