2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 170 -

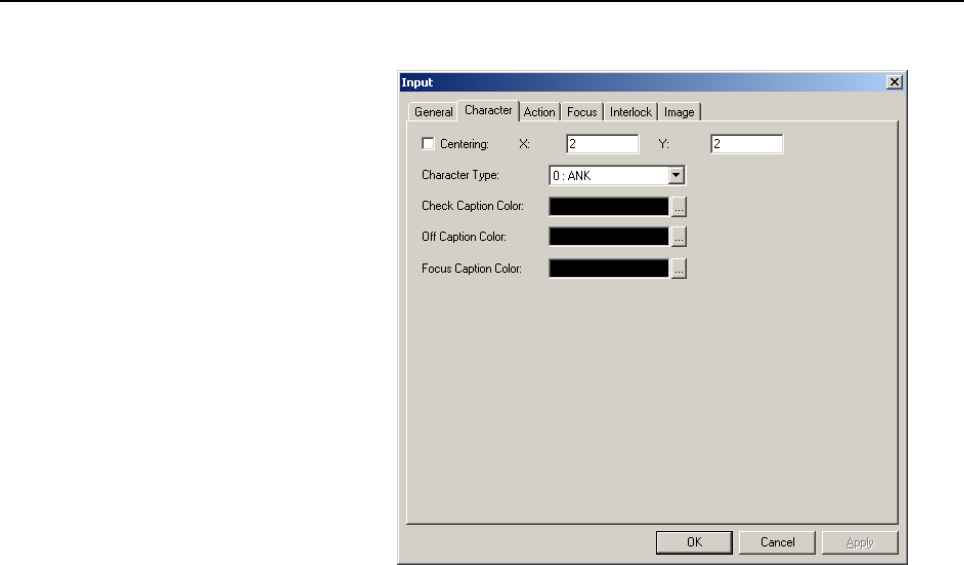

- Character

Centering:

Check this check box to center the caption display position

automatically in the vertical and horizontal directions within the

rectangle of the control.

X, Y:

Specify the display position of the caption by using relative

coordinates within the rectangle of the control. With the

upper-left corner of the rectangle of the control used as the

reference, specify the coordinates of the upper-left corner of the

character string. If you have checked the check box for automatic

centering, coordinates after automatic calculation are set.

Character Type:

Specify the type of character used for a caption character string.

0: ANK (displays a mixture of half-size and 2x-size

characters)

1: X2 (Half-size characters set for a caption are displayed as

2x characters.)

2: X4 (displays characters two times larger vertically and

horizontally)

3: X6 (displays characters two times larger vertically and three

times larger horizontally)

4: SMALL (displays characters smaller than half-size

characters)

Focus Caption Color:

Specify a numeral indication color when the control is focused.

Off Caption Color:

Specify a numeral indication color when the control is not

focused.

Check Caption Color:

Specify a numeral indication color when the control lights

according to the check function.
