B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 97 -

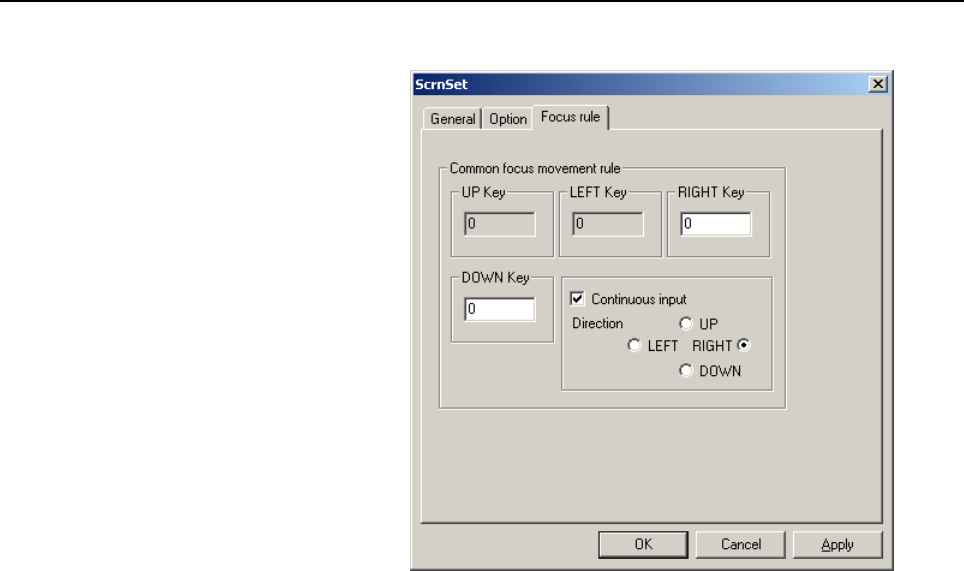

- Focus rule

Common focus movement rule

UP key, DOWN key, LEFT key, RIGHT key:

Set up a common focus movement rule for controls with input

placed on a screen. To be specific, specify index

increment/decrement values to be added to the focusing index

number for a control currently having the focus when the → or ↓

cursor is pressed. An increment/decrement value corresponding

to the ← or ↑cursor key is automatically set up. See “Focus

Movement & Continuous Input setting example.”

Continuous input:

Turn on this check box if you want to input data continuously for

controls with input. To use this function, also set up the

following “Direction” property.

Direction:

The continuous input function causes the focus to move

automatically (rather than by pressing a cursor key) after data is

input. Specify the direction in which the focus is to move.
