FANUC Picture Operators manual Page 148

Operators manual

Page of 402

/ 402

2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 134 -

Address:

Specify an output signal address.

Word:

Specify a value from -32767 to +32767.

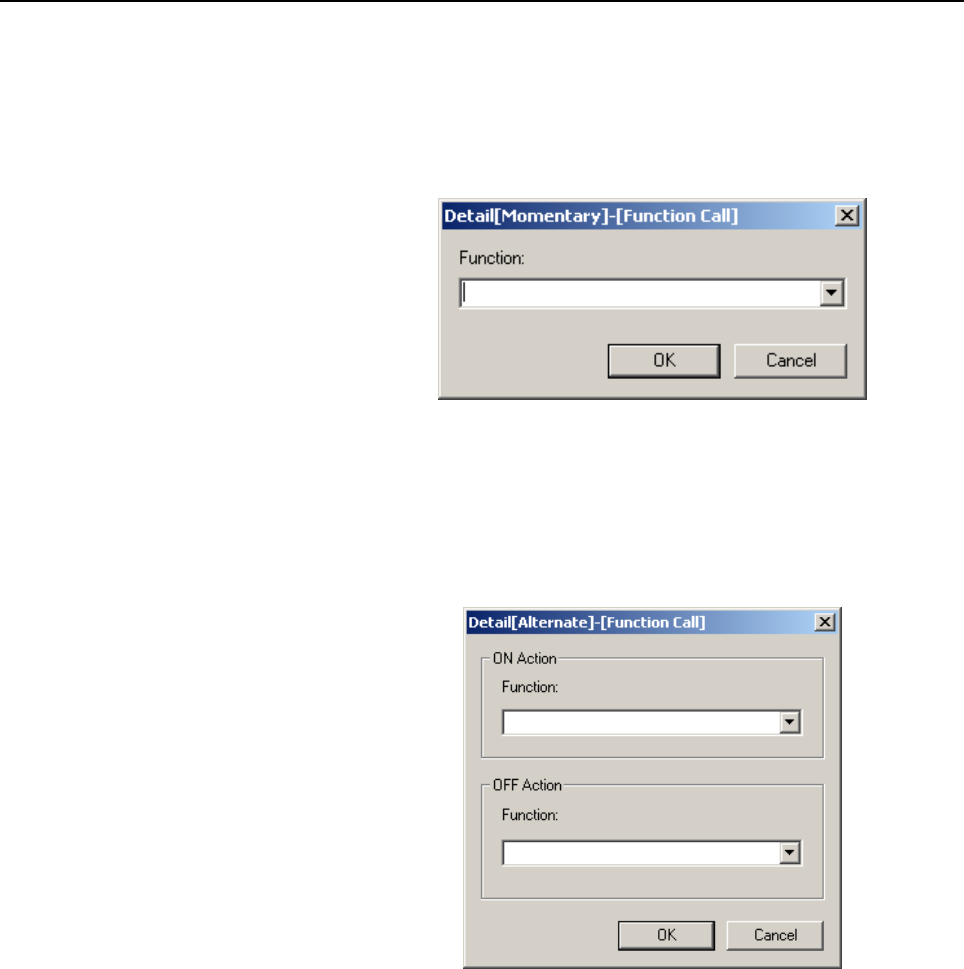

- Detail[Momentary]-[Function Call]

Specify a function to be called when the switch is turned on.

Function:

Describe an FP function. For the method of description, see

Chapter 3, “FP Functions.”

- Detail[5:Alternate]-[Function Call]

[ON Action], [OFF Action]

Specify separately [ON Action] to be executed when the switch makes

a transition from OFF to ON, and [OFF Action] to be executed when

the switch makes a transition from ON to OFF.

Function:

Describe an FP function. For the method of description, see

Chapter 3, “FP Functions.”
