FANUC Picture Operators manual Page 56

Operators manual
2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01
- 42 -
2.2.9.3 Settings for calling a custom screen with the
OPER/CUSTOM/GRAPH keys
This subsection explains the method of calling a custom screen with
the [OPER]/[CUSTOM] keys on the virtual keyboard and the
[CUSTOM] key on the MDI unit of the Series 16i/18i/21i and the
method of calling a custom screen with the [CUSTOM]/[GRAPH]
keys on the virtual keyboard and the [GRAPH] key on the MDI unit
of the Power Mate i-D/H.

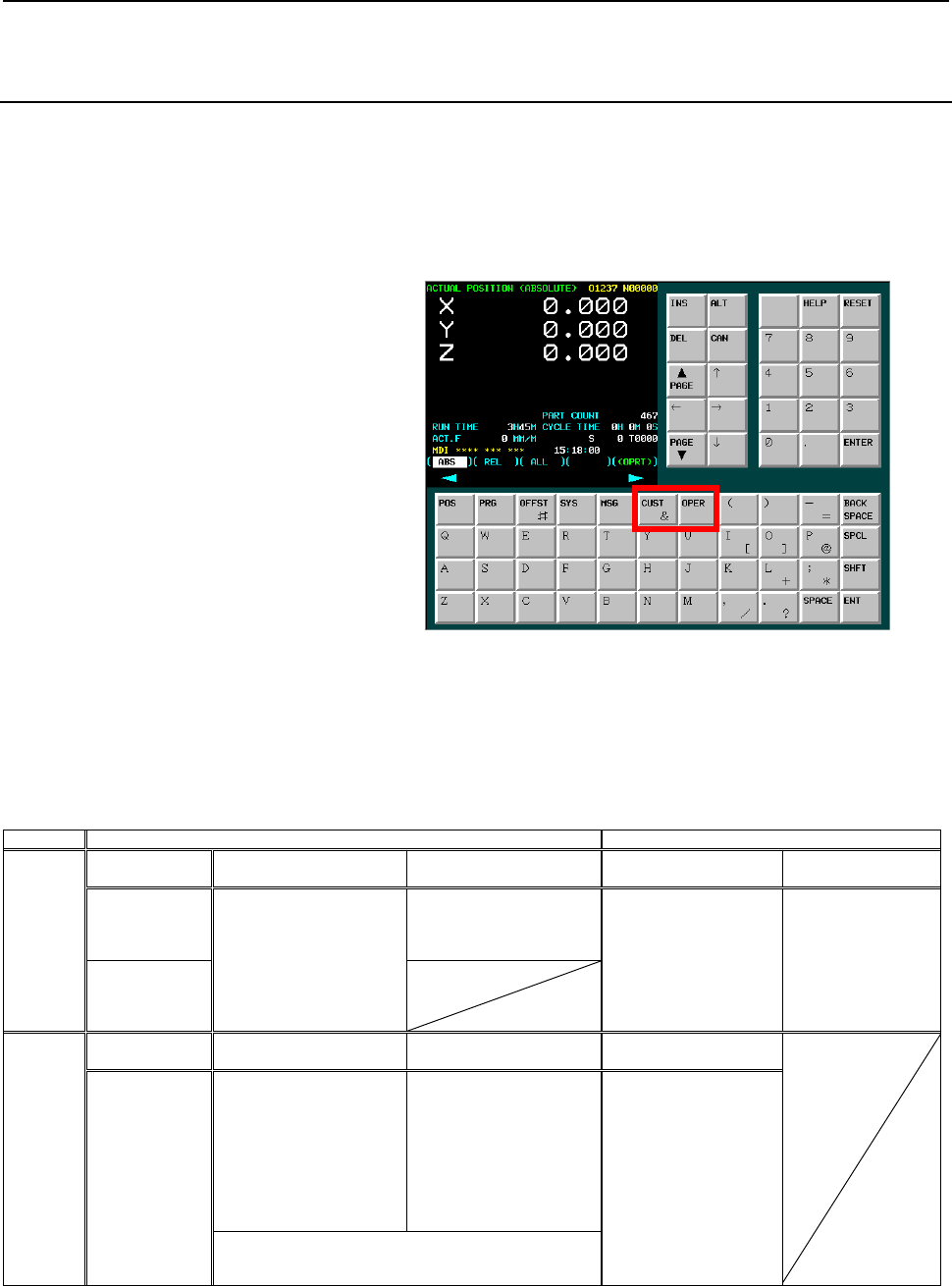

The CUSTOM and GRAPH keys set up with these methods, as well as
the blank key, are enabled for the switching to a custom screen only if
the CNC screen is displayed as shown in the figure above. If a custom
screen is already displayed, therefore, pressing these keys will start the
corresponding operations, but does not eventually perform switching
to the specified custom screen.
CNC For virtual board For MDI unit
Display unit
type
CUSTOM OPER CUSTOM (Blank key)
HSSB
connection
Assign the soft key
number of 0x1903 to
the custom screen to
be called.
Series
16i/
18i/21i
Display link
connection
Assign the soft key
number of bit 5
(0x0106), 6 (0x0206),
or 7 (0x0306) of
parameter No. 8652
to the custom screen
to be called.(Note 1)
Same as the setting
of the CUSTOM key
on the virtual
keyboard
(Note 1)
(Note 2)
Assign the soft
key number of
parameter No.
8652#4=1,
0x0007 to the
custom screen to
be called.
(Note 3)
Display unit
type
CUSTOM GRAPH GRAPH
Assign the soft key
number of parameter
No. 3195#0=1, and
bit 0 (0x0106), 1
(0x0206), or 2
(0x0306) of parameter
No. 8653 to the
custom screen to be
called.(Note 1)
Assign the soft key
number of parameter
No. 3195#0=0, and
bit 0 (0x0105), 1
(0x0205), or 2
(0x0305) of parameter
No. 8653 to the
custom screen to be
called.(Note 1)
Power
Mate i
D/H
Display link
connection
To use “OPER” as the key top of each
switching key, set bit 1 of parameter No. 3195
to 1.
Same as the setting
of the GRAPH key
on the virtual
keyboard
(Note 1)
Previous page
Next page
