B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 167 -

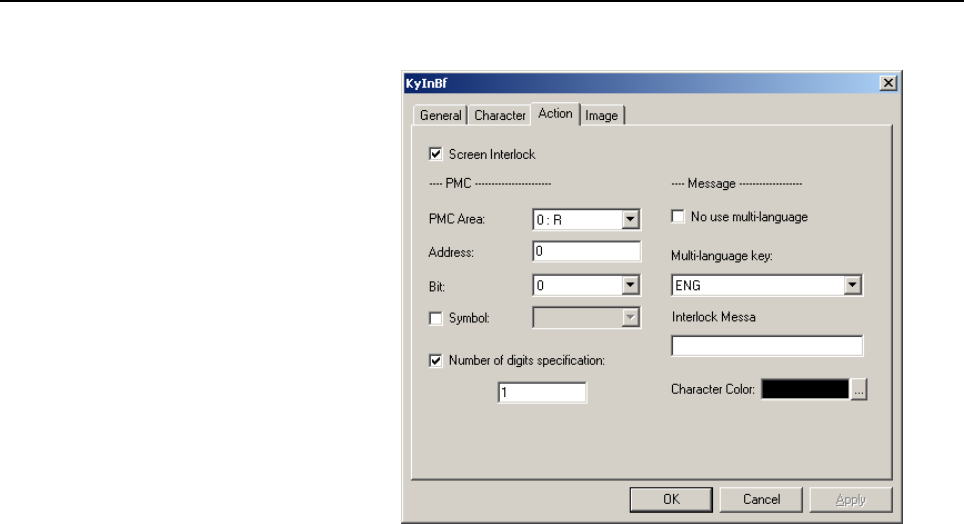

- Action

Screen Interlock:

Numeral input from an MDI key or MDI key control can be

interlocked. This function is used to disable the setting of the

numeral indication control with key input according to the

machine state.

PMC Area:

Specify a type of address for an interlock signal. The areas below

can be specified. When the signal is on, the interlock function is

activated.

R, D, K, X, Y, G, F, E(PMC-SB7)

Address:

Specify an interlock signal address.

Bit:

Specify the bit position of an interlock signal by using a number

from 0 to 7.

No use multi-language:

Multi-language key:

See [Editing multi-language display captions] in Subsection

2.3.1.1, “Description of general property setting items”.

Interlock Message:

If an MDI key is input when the interlock function is activated, a

message specified here is output to the key input buffer.

Character Color:

Specify the display color of an interlock message.

Number of digits specification:

Check this check box to specify the number of character input

digits of the key input buffer.

This causes the text box on the right to accept input; set the

number of digits.

The number of digits includes the digits of the decimal point and

the sign, if used.

If the character type or rectangle size is changed, the number of

digits may have to be changed accordingly.
