B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN
- 269 -
The machine operator’s panel screen consists of one
parent(=base/main) screen for the machine operator’s panel and four
types of child(=sub) screens, namely, coordinate child screen, lamp
child screen, button child screen, and an alarm child screen. Each of
the child screens other than the alarm child screen has a switching
button for switching to a desired screen as required.
The alarm child screen is not switched. This screen, however, is
common to all parent screens, so that this screen, when made available
as a child screen, can not only improve screen maintainability but also
suppress the increase in screen data memory size.

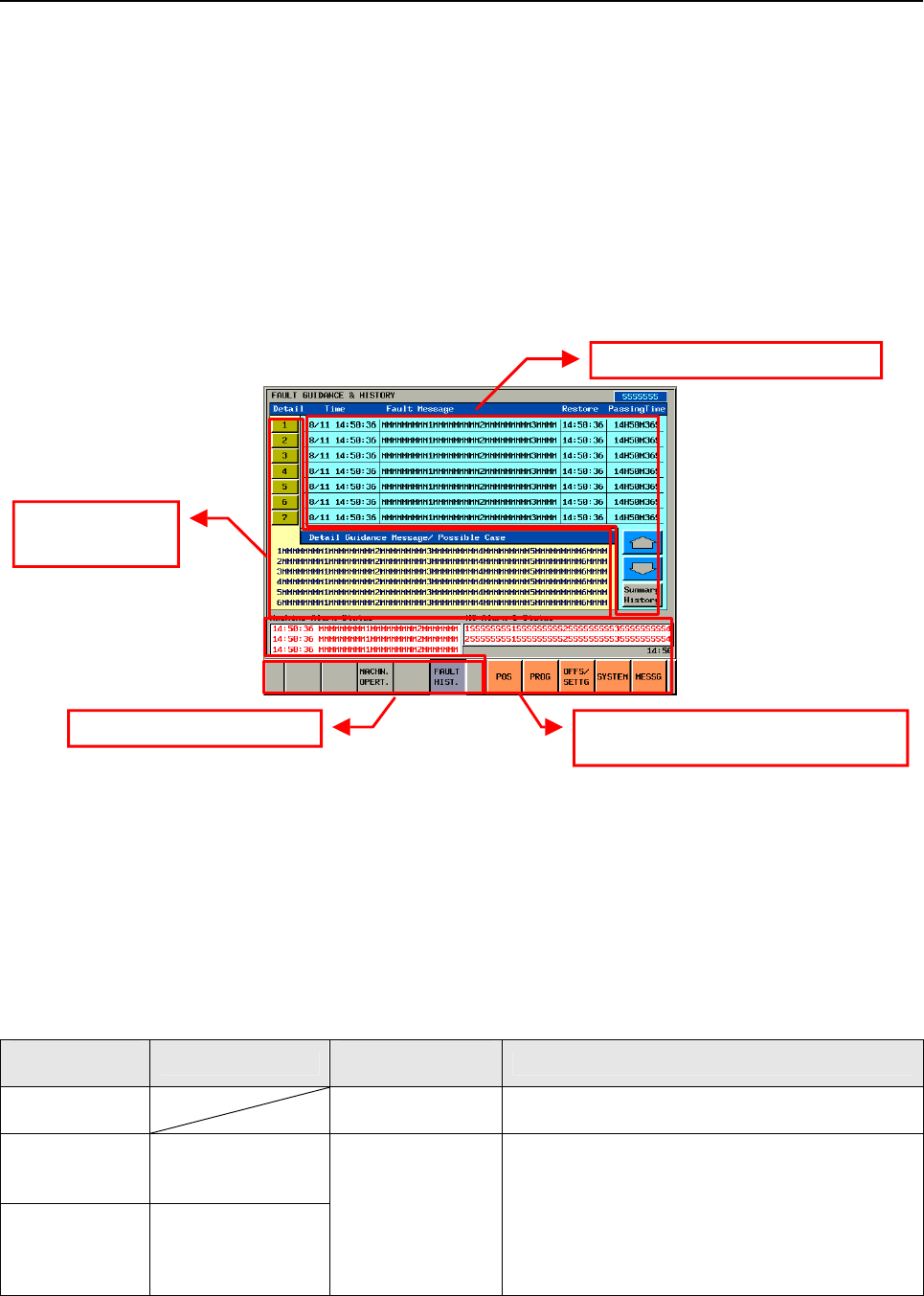

Fault guidance and history display screen
a. Current fault or fault history display
c. Fault display/CNC state and CNC screen
switch buttons (common child screen)
b. Fault details and
guidance display
d. Screen switch menu buttons
The fault guidance and history display screen consists of screens a, b,
and d in the parent screen portion, and the alarm child screen, which is
a common child screen.
The current fault or fault history display is switched using the history
display switch function of the button control, so that no child screen is
required.
The table below indicates the setting for switching to the custom
screen when the CNC screen is displayed or the power is turned on.
Kind of custom
screen switch
Softkey Number
Custom screen
name
Note
Start-up screen
Machine operator’s
panel screen
Function key of
CUSTOM
0x0106
(Series 16
i/18i/21i,
Power Mate
i)
Function key of
CUSTOM1
0x3206
(Series 30
i/31i/32i)
[RETURN]
The screen display is switched to the previously
displayed custom screen.
If the machine operator’s panel screen is displayed
previously, the screen display is switched to the
machine operator’s panel. If the fault guidance
screen is displayed previously, the screen display is
switched to the fault guidance screen.
Previous page
Next page
