B-66284EN/01 2.DEVELOPMENT OF CUSTOM SCREEN

- 37 -

2.2.9 Make MEM file

This step converts data to display a created machine operation screen

with FANUC PICTURE on the CNC and creates an MEM file to be

written to the F-ROM of the CNC.

By using the procedure below, convert a created custom screen to

screen data for FANUC PICTURE to create data in memory card

format.

2.2.9.1 Data conversion and MEM form file making procedure

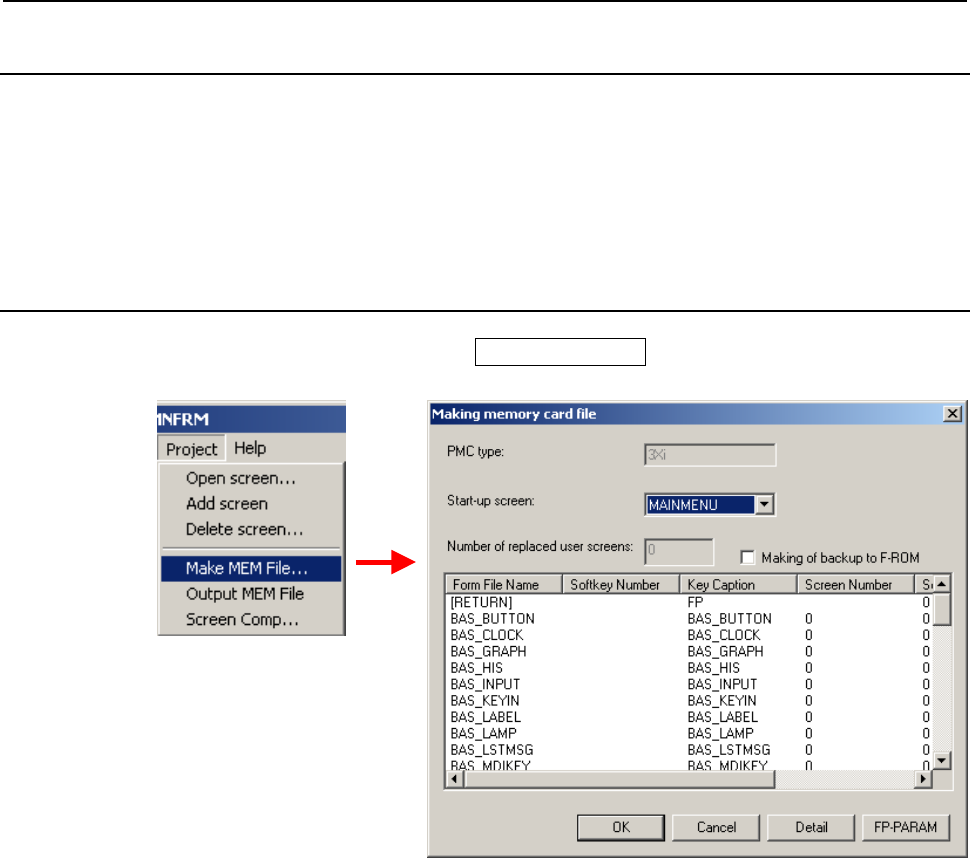

<1> Click the Make MEM File… menu button.

The Making of memory card file dialog box appears.

<2> In the Start-up screen pull-down list box, select a screen to be

displayed when the power is turned on.

<3> The Form File Name field indicates [RETURN] and lists up

screens that function as parent screens in created custom screens.

So, double-click a screen to be called by using the CNC soft key,

to open the Setting user screen dialog box.

The Form File Name field of the Making of memory card file

dialog box includes a special screen, namely, [RETURN].

Specify this screen to display the user screen displayed

immediately before switching to a CNC screen without

specifying a user screen (base screen) created with FANUC

PICTURE. Even in this case, the soft key for calling a user

screen in the procedure above needs to be specified.
