2.DEVELOPMENT OF CUSTOM SCREEN B-66284EN/01

- 68 -

Check Char :

This option checks the message text on all lines to see if the set

message character string contains characters that cannot be

displayed with the character type of the character property of the

control.

OK :

Terminates editing. Clicking it causes the [Save As] dialog box

to appear, allowing you to save the message file with a new name.

If you do not want to change the file name, select the [Same as

Previous] file name and click the Save button.

Cancel :

Cancels a file editing operation.

Copy&Paste

Rectangular copy [CNTL+C] and paste [CNTL+V] in the

direction of the row can be done to cells other than the character

color. Moreover, the copy character can be done from the

clipboard of Windows and the paste be done to the Windows

application or the text message editor.

However, please note the following items which are these

limitations.

CAUTION

1 The copy that there is new line in the cell such as

EXCEL does not become new line in the cell in the

text message editor. Therefore, please delete or

replace new line in the cell such as EXCEL with

“\n”.

2 Please give the copied direction of the row as one

row. Please note that the character string of two or

more cells enters the beginning cell of the paste

(cell in left upper corner) for two rows or more.

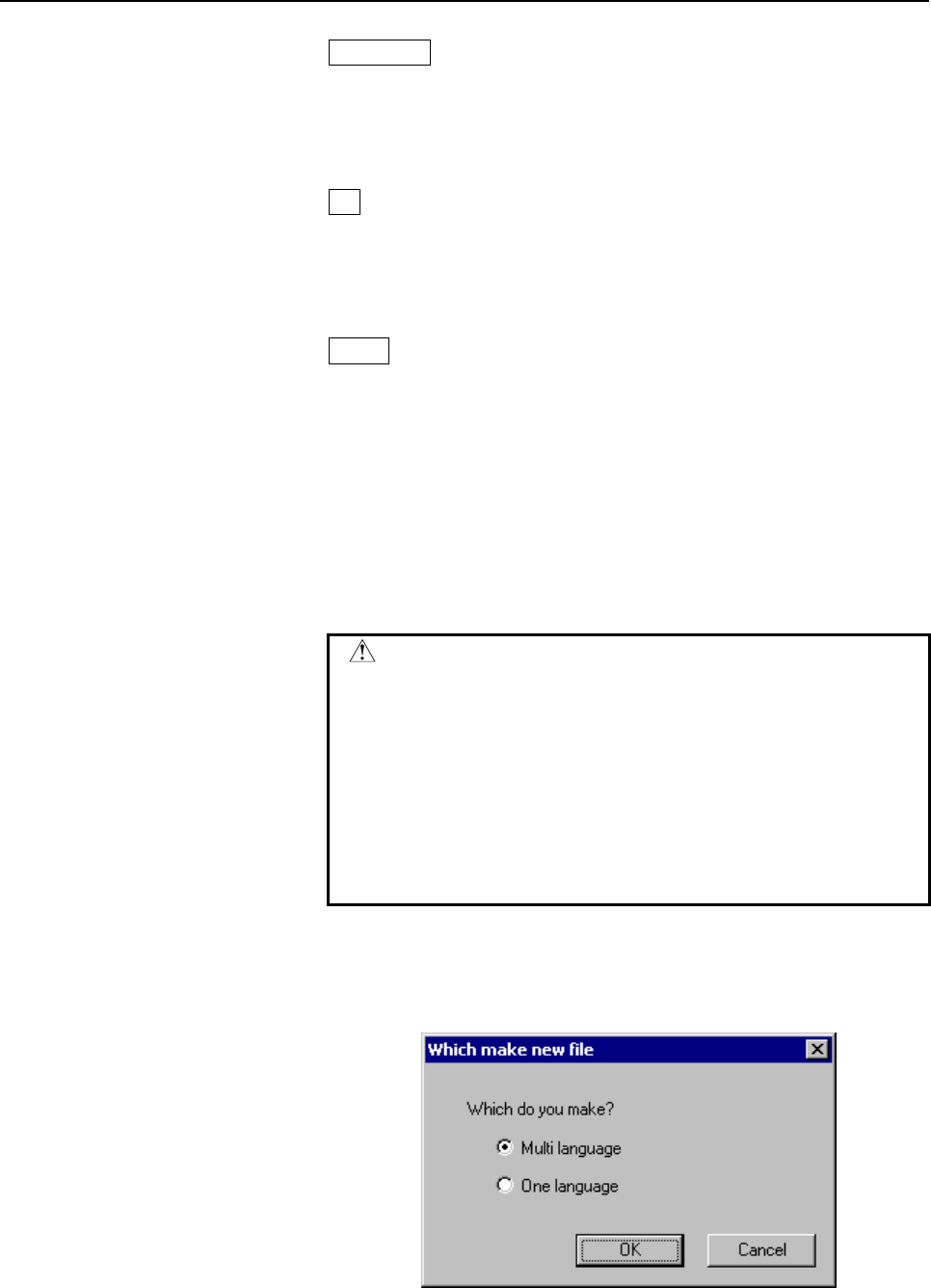

Multi-language editing related to text messages

The following explains how to handle the multi-language display

function of a type that writes messages to text message files (VTS

files), as well as the editing method.
