PROGRAMMING

B–63664EN/02

8. COORDINATE VALUE

AND DIMENSION

105

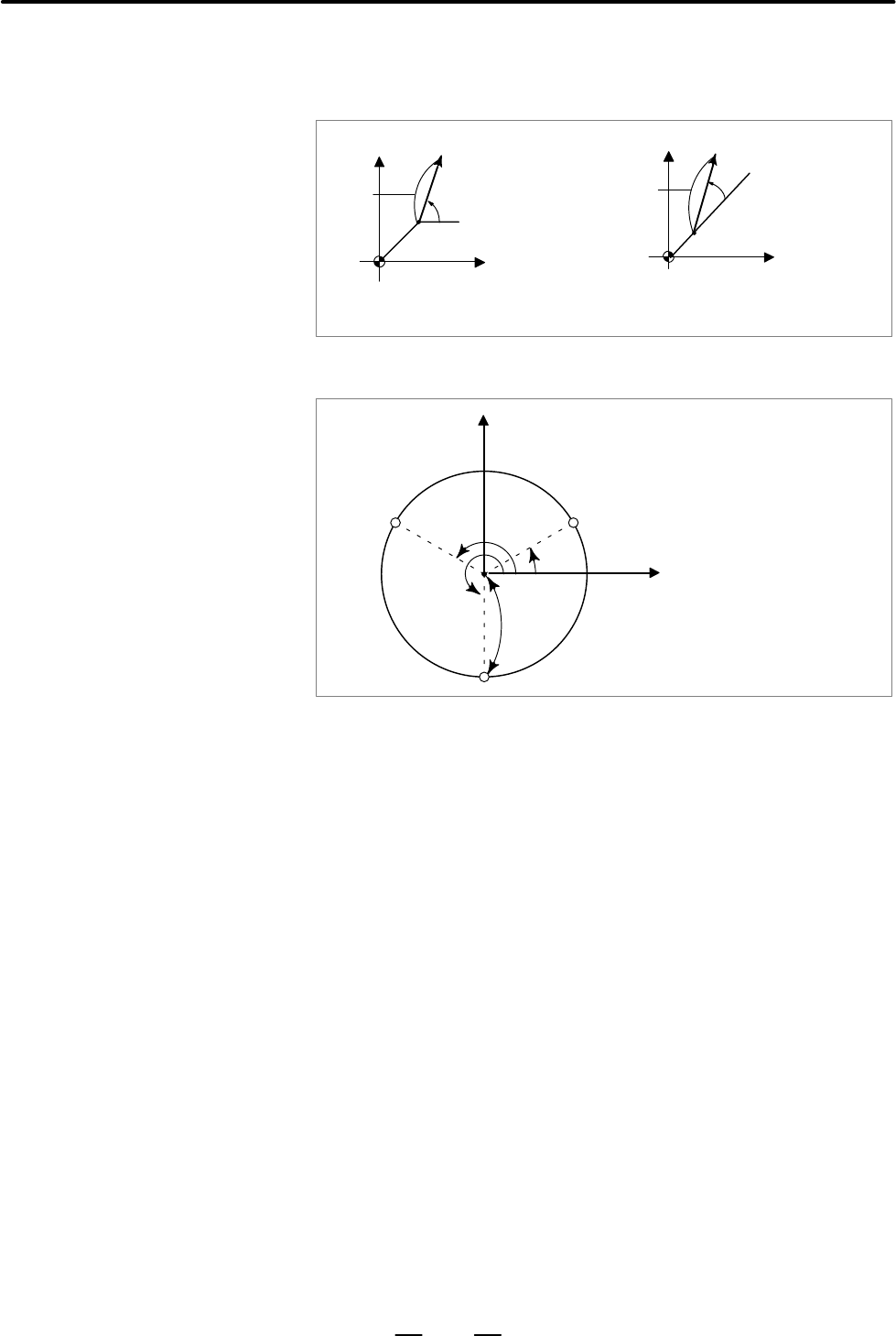

Specify the radius (the distance between the current position and the

point) to be programmed with an incremental command. The current

position is set as the origin of the polar coordinate system.

Radius

Command position

Actual position

Angle

When the angle is specified

with an absolute command

When the angle is specified

with an incremental command

Command position

Actual position

Angle

Radius

Bolt hole circle

150°

30°

100mm

270°

– The zero point of the work coordinate

system is set as the origin of the polar

coordinate system.

– The XY plane is selected.

N1 G17 G90 G16 ;

Polar coordinate command, X–Y plane selection

The origin of the polar coordinate system is the same as that of the

workpiece coordinate system.

N2 G00 X100.0 Y30.0;

Radius: 100 mm, angle: 30 deg.

N3 G65 P1000;

Drilling macro call

N4 G00 Y150.0;

Radius: 100 mm, angle: 150 deg.

N5 G65 P1000;

Drilling macro call

N6 G00 Y270.0;

Radius: 100 mm, angle: 270 deg.

N7 G65 P1000;

Drilling macro call

N8 G15;

Polar coordinate command cancel

N9 M30;

N1 G17 G90 G16;

Polar coordinate command, X–Y plane selection]

The origin of the polar coordinate system is the same as that of the

workpiece coordinate system.

D Setting the current

position as the origin of

the polar coordinate

system

Examples

D If the radius and the

angle are specified by

absolute values

D If the radius is specified

by an absolute value and

the angle by an

incremental value
