16i/160i-LB Operators manual Page 543

Operators manual

Page of 912

/ 912

OPERATION

B–63664EN/02

4. AUTOMATIC OPERATION

519

If the beam moves in the reverse direction after a feed hold stop, the beam

stops forward return movement at the position of the feed hold stop, then

resumes forward movement. If the beam moves in the reverse direction

after a single block stop, the nozzle also stops forward return movement

at the position of the single block stop.

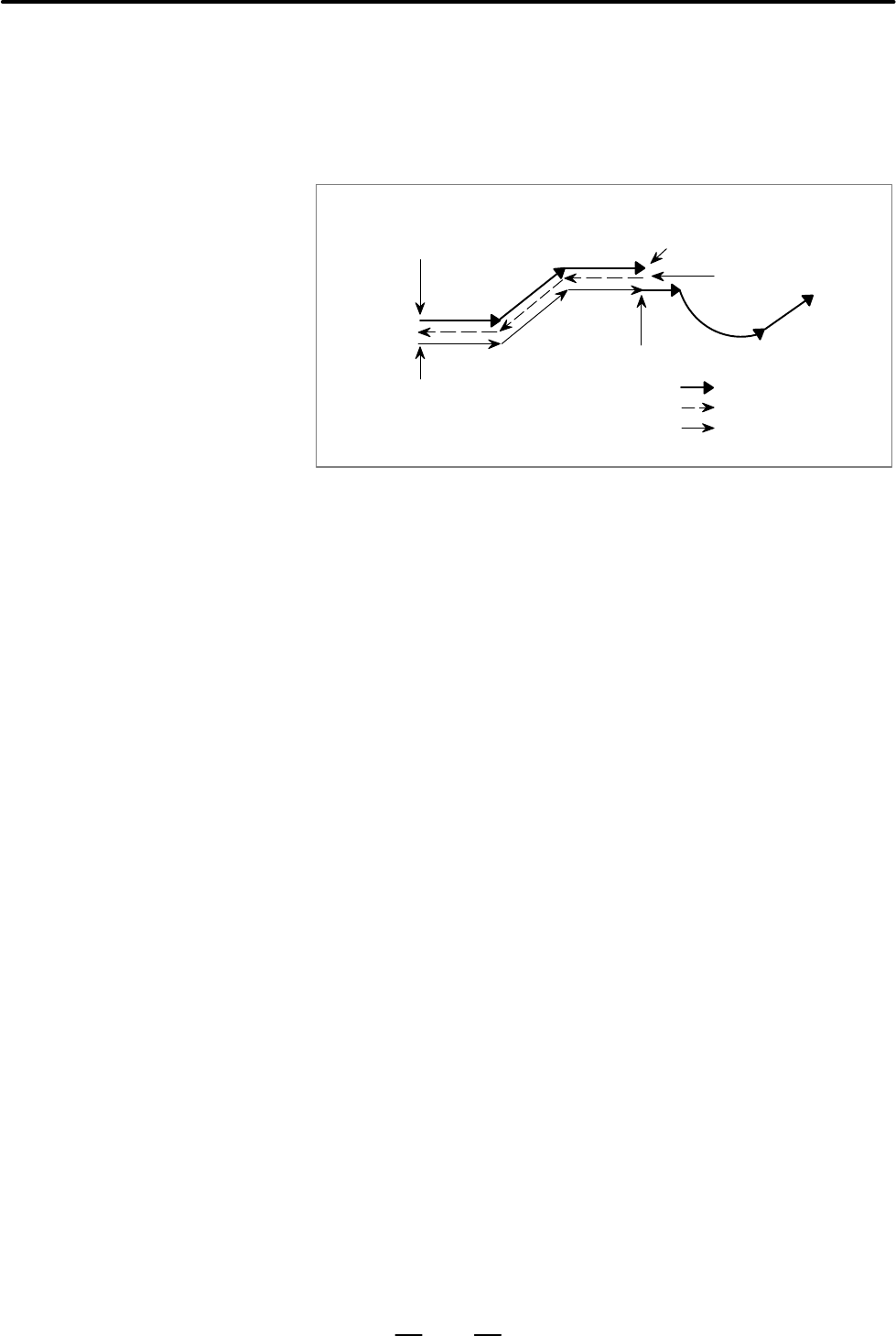

Cycle start

(forward movement started)

Feed hold stop

Reverse movement

signal=1,cycle start

Reverse movement

started

Forward return movement started

Forward movement started

Forward movement

Reverse movement

Forward return

movement

In automatic operation, a program is usually executed in the order that

commands are specified. This mode of execution is referred to as forward

movement. The retrace function can execute in reverse, program blocks

that have already been executed. This mode of execution is referred to as

reverse movement. In reverse movement, the nozzle can retrace the

nozzle path followed by forward movement.

A program can be executed in the reverse direction only for those blocks

that have already been executed in the forward direction.

Approximately 40 to 80 blocks can be executed in the reverse direction,

depending on the program.

During reverse movement, the REVERSE MOVEMENT LED is on and

RVRS blinks in the lower–right corner of the screen to indicate that the

nozzle is undergoing reverse movement.

The nozzle can perform reverse movement one block at a time when the

single block mode is set.

The nozzle can be moved again along the retraced path of the blocks in

the forward direction up to the block where reverse movement was

started. This movement is referred to as forward return movement. In

forward return movement, the beam moves along the same path as

forward movement up to the position where reverse movement started.

When the beam returns to the block where reverse movement was started,

the nozzle resumes forward movement according to the program.

In forward return movement, the REVERSE MOVEMENT LED is off

and RTRY (Re–TRY) blinks in the lower–right corner of the screen to

indicate that the nozzle is undergoing forward return movement. When

the beam switches from forward return movement to forward movement,

RTRY (Re–TRY) disappears from the lower–right corner of the screen.

The nozzle can perform forward return movement one block at a time

when the single block mode is set.

Explanations

D Forward movement and

reverse movement

D Forward return

movement
